black pipe, extruded from high-density polyethylene compound type PE100. The PE100 compound is a homogeneous blend of polyethylene, antioxidants, pigments, and UV-radiation stabilisers. Reference standard: EN 12201-1,2: Plastic piping systems for water supply, service connections and pressurised drainage systems. Polyethylene (PE). Part 1: General, Part 2: Pipes. Pipe dimensions are standardised in accordance with EN 12201-2. Use: WaterKIT PE100CERT pipes are used to build drinking-water supply networks installed buried in the ground. A 50-year service life corresponds to an operating temperature of 20°C and a working pressure equal to or lower than the PN for which the pipe was manufactured. Approvals: Technical approval and technical assessment for use in construction. Sanitary approval for use with drinking water.

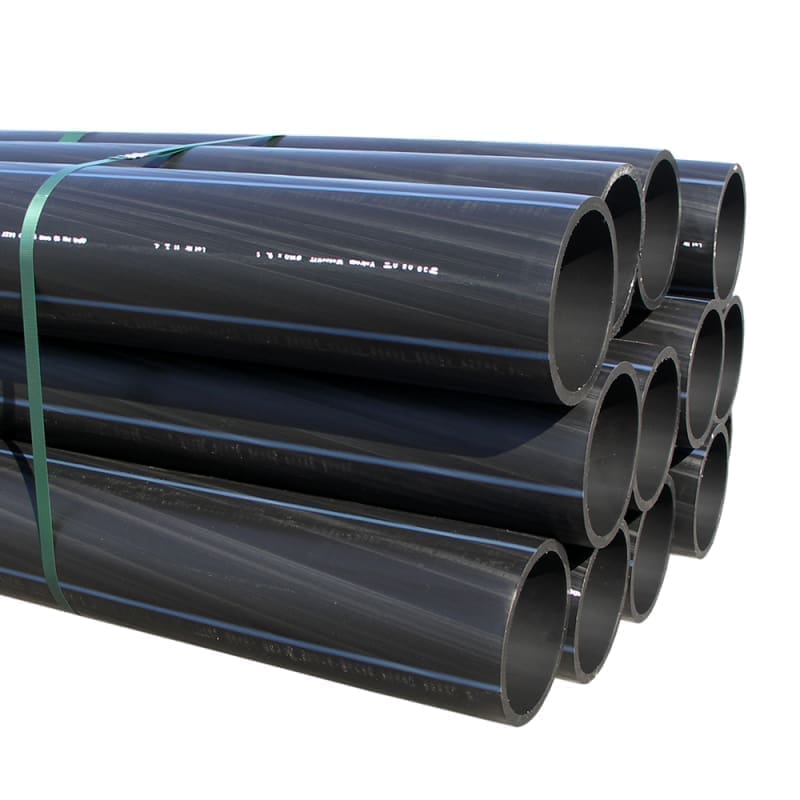

VALWater PIPE DRINKING WATER PE100 CERT D.280×16.6 mm PN10 SDR17 13 m BAR
High-density polyethylene PE100 pipes are used to build cold-water supply networks (including drinking water). They are installed buried in the ground, using the conventional method, in an open trench with sand bedding.
Product standard: SR EN 12201-2: Plastic piping systems for water supply and for service connections and pressurised drainage systems. Polyethylene (PE). Part 2: Pipes.
Product standard: SR EN 12201-2: Plastic piping systems for water supply and for service connections and pressurised drainage systems. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | PEHD WATER PIPE D125-315 |
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Presiune nominala | 10 bar |
| Lungime | 13 m |
| Grosime | 16.6 mm |
| SDR | 17 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 280 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
