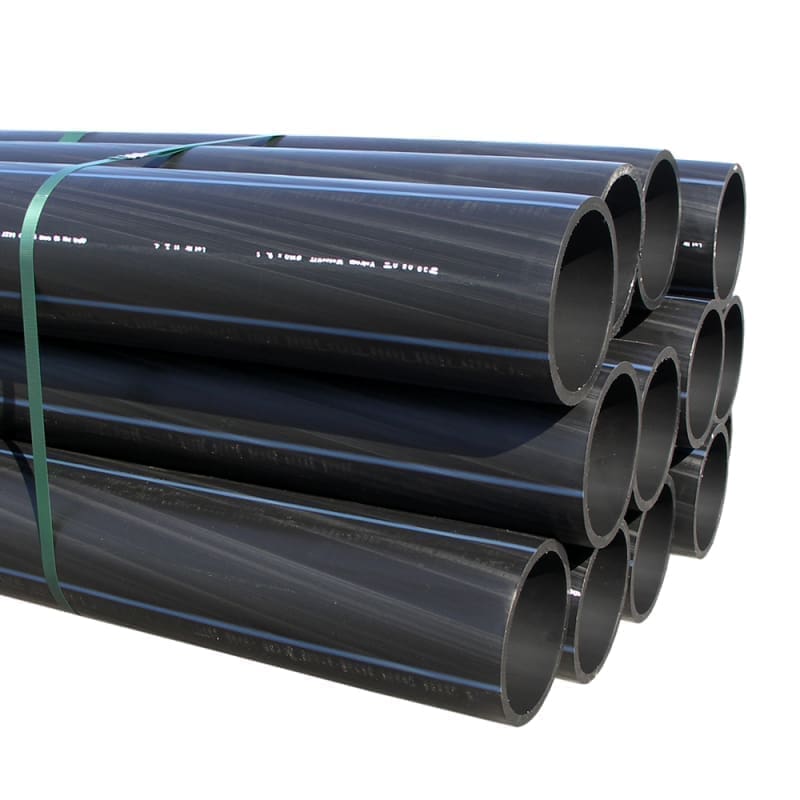

VALWater TRIPLE-LAYER DRINKING WATER PIPE PE100RC D.225×20.5 PN16 SDR11 6 m
PE100RC-PE100-PE100RC triple-layer pipes are used in pressurized water supply networks (including drinking water) and are installed underground in open trenches with sand bedding.
The pipes are manufactured by co-extrusion, configured as follows:
-the outer and inner layers - smooth and blue, made of PE100RC,
-the layer between the two (intermediate) - smooth (plain), black, made of PE100.
Compliance standard: SR EN 12201-2 - Plastics piping systems for water supply and for service connections and pressure sewerage systems - Part 2: Pipes. Annex B: Co-extruded layer pipes.
The pipes are manufactured by co-extrusion, configured as follows:
-the outer and inner layers - smooth and blue, made of PE100RC,
-the layer between the two (intermediate) - smooth (plain), black, made of PE100.
Compliance standard: SR EN 12201-2 - Plastics piping systems for water supply and for service connections and pressure sewerage systems - Part 2: Pipes. Annex B: Co-extruded layer pipes.
| Tip articol | TUB |
|---|---|
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Material | PE100RC |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Lungime | 6 m |
| SDR | 11 |
| Presiune nominala | 16 bar |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 225 |
| Cod vamal | 39173200 |
| Subclasa | HDPE-RC WATER PIPES D125-315 |
