Standard above-ground fire hydrants are used for water supply in firefighting, in clean water networks with a maximum operating temperature of 40°C, maximum pressure of 16 bar and frost depth of 1.25 m.
Reference standards
EN 14384 Above-ground fire hydrants
EN 1092-2 Flanges and their joints. Circular flanges for pipes, valves, fittings and accessories designated by PN. Part 2: Cast iron flanges
The DN100 hydrant has 1xA (4) +2 x type B (3) connections
Epoxy paint protection 250 microns
Total height of the hydrant is 2150mm
Equipped with automatic drainage device after complete closure of the hydrant.

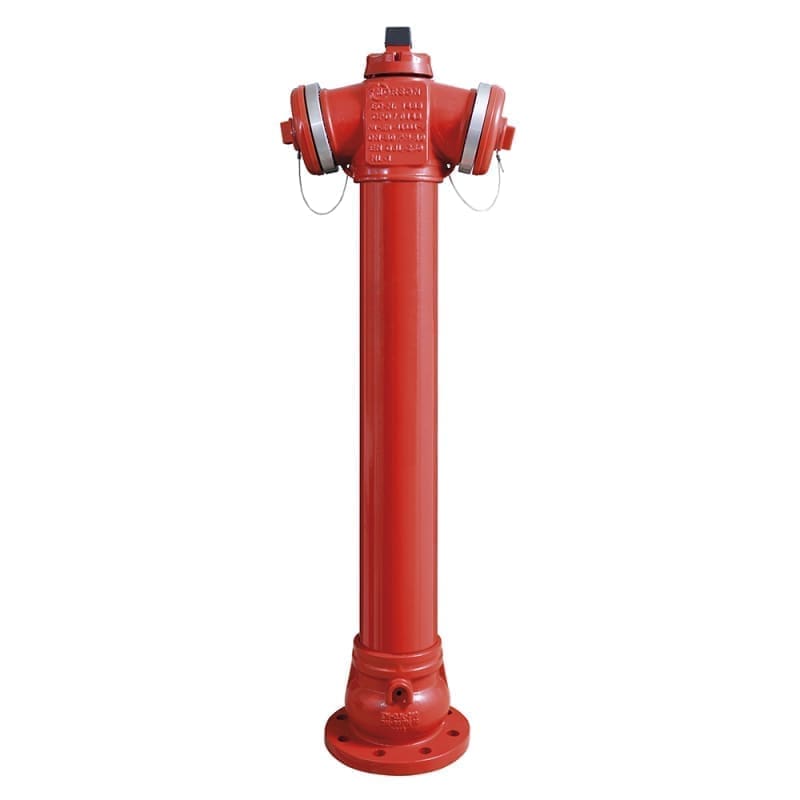

FIRE HYDRANT ABOVE GROUND VALWater WD PN10/PN16 DN100 Frost depth=1250
Standard above-ground fire hydrants are used for water supply in firefighting, in clean water networks with a maximum operating temperature of 40°C, maximum pressure of 16 bar and frost depth of 1.25 m. Reference standards EN 14384 Above-ground fire hydrants EN 1092-2 Flanges and their joints. Circular flanges for pipes, valves, fittings and accessories designated by PN. Part 2: Cast iron flanges The DN100 hydrant has 1xA (4) +2 x type B (3) connections Epoxy paint protection 250 microns Total height of the hydrant is 2150mm Equipped with automatic drainage device after complete closure of the hydrant.
| UM colete | PIECE |
|---|---|
| Tip articol | HYDRANT |
| Cod CPV | CPV 42131160-5 |
| Cantitate colet | 1 |
| Presiune nominala | 10 bar |
| Inaltime | 1250 |
| Cod vamal | 84818061 |
| Subclasa | HYDRANTS |
