Polyethylene to brass transition fitting. – Material: PE100, SDR 11 (ISO S5). Brass CW617N.
– 10 bar gas / 16 bar water (calculated for 20°C).
– 4 mm connectors.
– Welding indicators with limited displacement.
– Integrated pipe clamping system.
Welding must be performed by authorized welders using appropriate equipment and devices
and in compliance with the welding procedure.

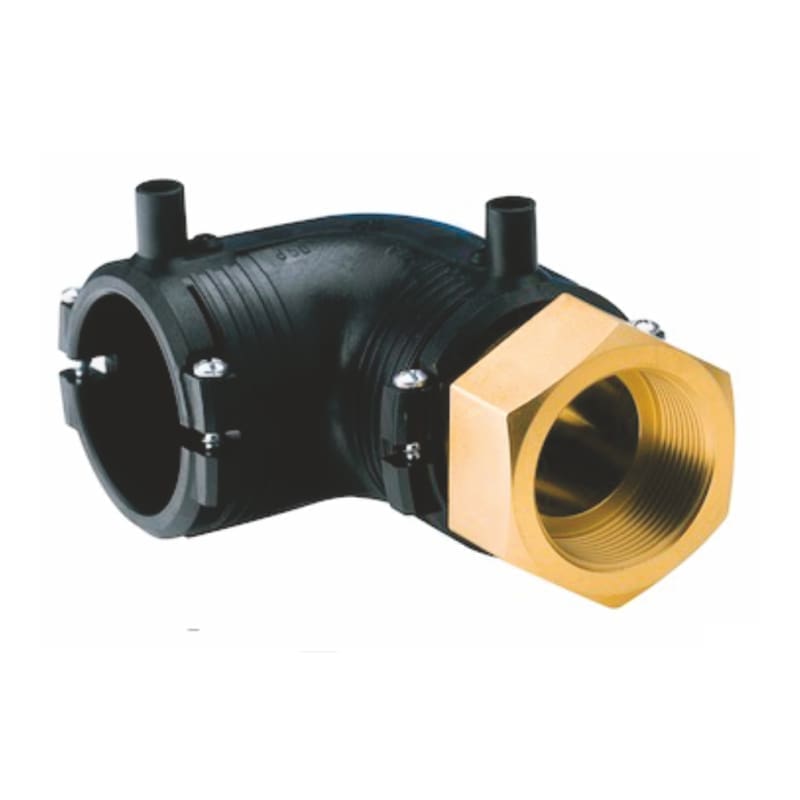

90-DEGREE EF ELBOW VALGasio PE/BRASS FEMALE THREAD D.50X1”1/4 SDR11
Polyethylene to brass transition fitting. - Material: PE100, SDR 11 (ISO S5). Brass CW617N.
- 10 bar gas / 16 bar water (calculated for 20°C).
- 4 mm connectors.
- Welding indicators with limited displacement.
- Integrated pipe clamping system.
Welding must be performed by authorized welders using appropriate equipment and devices, and in compliance with the welding procedure.
| Material | ALAMA |
|---|---|
| Tip articol | TOC |
| UM colete | BOX |
| Filet | FE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 6 |
| SDR | 11 |
| Diametru | 50 x 1 1/4" |
| Unghi | 90 Grade |
| Cod vamal | 74122000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
