These fittings are used for natural gas networks and potable water supply systems, constructed from high-density polyethylene pipes with SDR 11 wall thicknesses, compliant with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufactured by injection molding from PE100, with the electrofusion fitting’s resistance embedded in the material, corresponding to SDR 11 (ISO S8) dimensions, compliant with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage: 40 V. 4 mm connectors. Limited displacement welding indicators. Integrated pipe clamping system. Welding must be performed by authorized welders using appropriate equipment and adhering to the welding procedure.

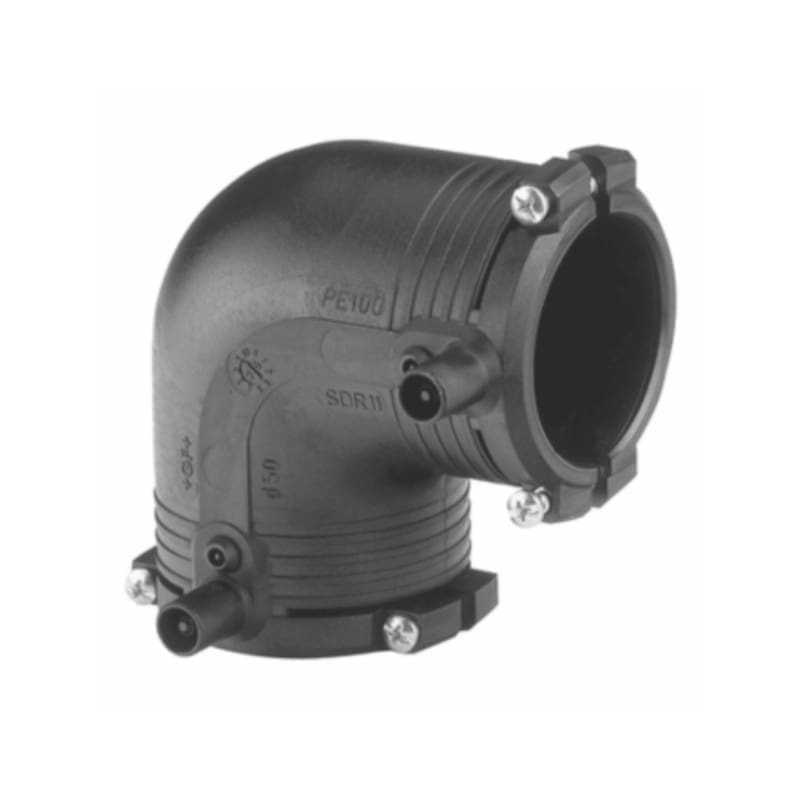

90° ELECTROFUSION ELBOW GF D. 40
These fittings are used for natural gas networks and potable water supply systems, constructed from high-density polyethylene pipes with SDR 11 wall thicknesses, compliant with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufactured by injection molding from PE100, with the electrofusion fitting's resistance embedded in the material, corresponding to SDR 11 (ISO S8) dimensions, compliant with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage: 40 V. 4 mm connectors. Limited displacement welding indicators. Integrated pipe clamping system. Welding must be performed by authorized welders using appropriate equipment and adhering to the welding procedure.
| Tip articol | TOC |
|---|---|
| UM colete | BOX |
| Material | HDPE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 10 |
| Diametru | 40 |
| Unghi | 90 Grade |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
