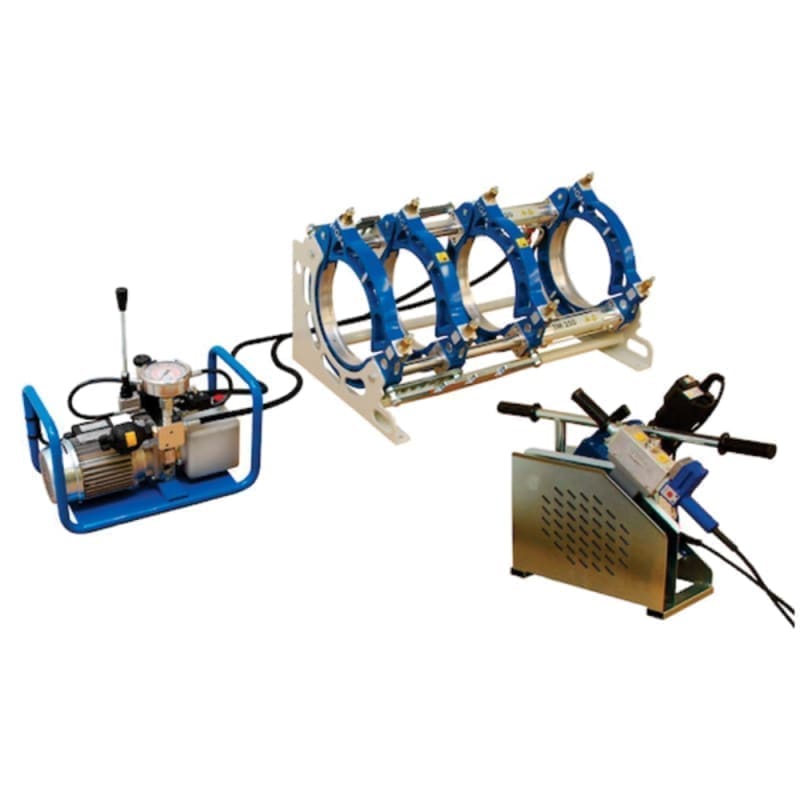

Ecos 250 is a butt fusion welding machine for PE, PP, PB and PVDF pipes and
fittings with diameters from 75–250,
for use in workshops or trenches.
Manually controlled hydraulic unit. Temperature controller
integrated in the heater plate handle. Requires separate power supply for
each component (hydraulic unit, facer, heater plate). Voltage/power:
230 V/3,270 W
Manually controlled hydraulic unit.
Temperature controller integrated in the heater plate handle
Requires separate power supply for each component
(hydraulic unit, facer, heater plate)
BASE MACHINE (Frame)
-Latest-generation design, with a robust, resistant machine frame
to bending
-Good accessibility thanks to the 35° tilt
-Sliding jaw no. 3 allows clamping and welding elbows and
tees without additional tools
-Clamping clamps are mounted on the top and can be folded down.
If necessary, the four clamps can be removed
quickly
-Simultaneous heater plate removal mechanism from the joining surfaces
to optimize the welding process
-Weight: ECOS 250 = 47 kg-
HYDRAULIC UNIT
-Compact design with protective frame
-Valve for precise, fine adjustment of hydraulic pressure
-Joystick control of the clamping jaws
-Precision pressure gauge with vibration protection and easy-to-read scale
-Hydraulic accumulator for equalization pressure for the cooling phase
cooling
-Integrated interface for the WR200 S ECO welding data logger
-Max. operating pressure: ECOS 250 – 160 bar
-Weight: 22 kg
FREZA
-Facing device for one or both facing surfaces
-Carrying handle, ergonomically positioned to counterbalance
the facer weight
-Self-locking mechanism in working position
-Safety microswitch to prevent unintended start-up
-Weight: ECOS 250 = 14 kg
HEATER PLATE
-High-performance heating element with electronic
temperature control
-High-quality PTFE non-stick coating with long
service life
-Temperature indicator located in the handle
-Weight: ECOS 250 = 8 kg
-Power supply: 230 V / ECOS 250 = 2,000 W
STAND
-For safe storage of the facer and heater plate
-Weight: ECOS 250 = 8 kg
Welding machines are delivered on a pallet and in a cardboard box to
protect components during transport.
According to regulations, inspection is required at 1 year.
The welding machines allow recording and printing of welding protocols only when
equipped with the WR 200 S ECO data logger
(code 53512000250), supplied on request.
Reducers are supplied on request. The reducer set includes 4 wide reducers
and 4 narrow reducers for each size,
cast in aluminum. The wide reducers also serve to re-round
the ends of ovalized pipes.
