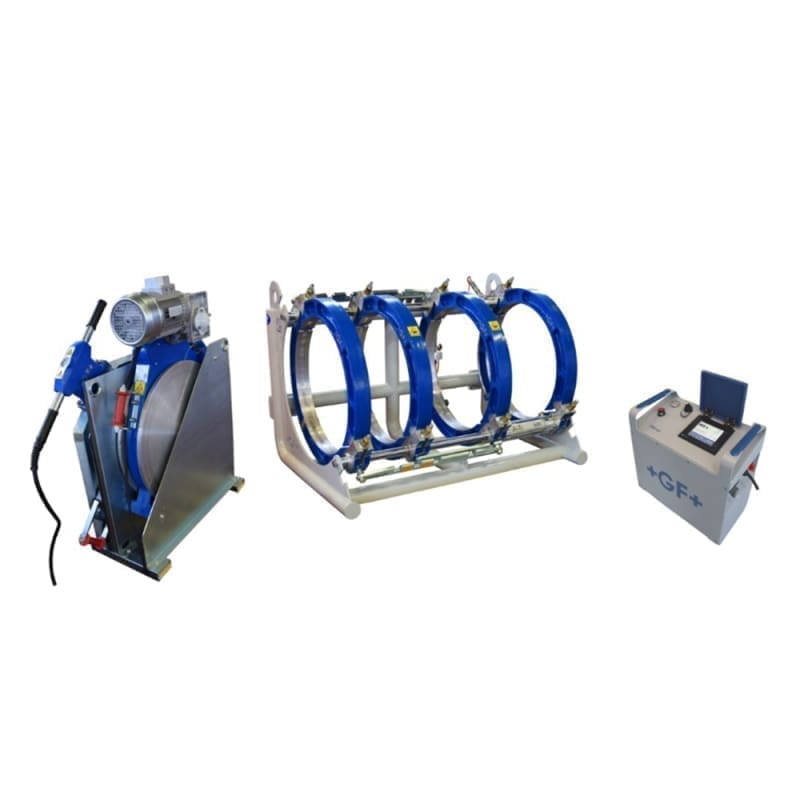

Machine for butt fusion welding of PE, PP, PB pipes and fittings with an outside diameter of 125–400 mm for pressurised piping systems in workshops, on construction sites and in trenches. Hydraulically operated with automatic CNC control unit. Delivery includes a wooden crate. Reducers and other accessories are ordered separately. Voltage/Power: 400 V/5,700 W
BASE MACHINE (FRAME)
– State-of-the-art design, with a bend-resistant, robust machine frame
– Improved accessibility thanks to a 35° tilt angle
– Movable clamp 3 (sliding) enables easy, time-saving clamping of elbows or tees without additional devices
– Mechanism for removing the heating element from both joint surfaces to optimise the welding process
– Linear displacement sensor (potentiometer) fitted in the base machine provides control and safety throughout the entire welding process
– Weight = 80 kg
HYDRAULIC UNIT
– Compact aluminium housing with an innovative design
– Intuitive colour interface
– Operator guidance throughout the welding process using symbols and graphics
– Automatic calculation, setting and control of fusion parameters—pressure, time and temperature—in accordance with applicable national standards
– Integrated GPS receiver
– 10 freely programmable welding cycles (e.g., for non-standard pipe sizes)
– Language selection
– Operator code (ISO 12176-3), job code and pipe codes (ISO 12176-4) can be entered using a scanner (ordered separately)
– On-site verification of stored welding reports directly on the display
– Transfer of stored welding reports to an external PC via USB memory stick (included)
– Welding reports compatible with the Welding Book app
– Integrated connectors for the planer and heating element
– Accumulator for equalisation pressure during the cooling phase
– Maximum operating pressure: 160 bar
– Weight: 37 kg
PLANER
– Planing device for one or both welding surfaces
– Ergonomic handling, weight-balanced
– Self-locking mechanism in the working position
– Safety microswitch to prevent accidental start-up
– Weight = 47 kg
HEATING ELEMENT
– High-performance heating element with electronic temperature control
– High-quality PTFE non-stick coating with long service life
– Temperature indicator integrated in the handle
– Weight = 16 kg
– Power supply: 3.5 kW
STAND
– For safe storage of the planer and heating element
– Weight = 30 kg
Welding machines must be used in accordance with applicable standards by trained and authorised personnel. The machine is accompanied by operating and maintenance manual. According to regulations, inspection is required at 1 year.
