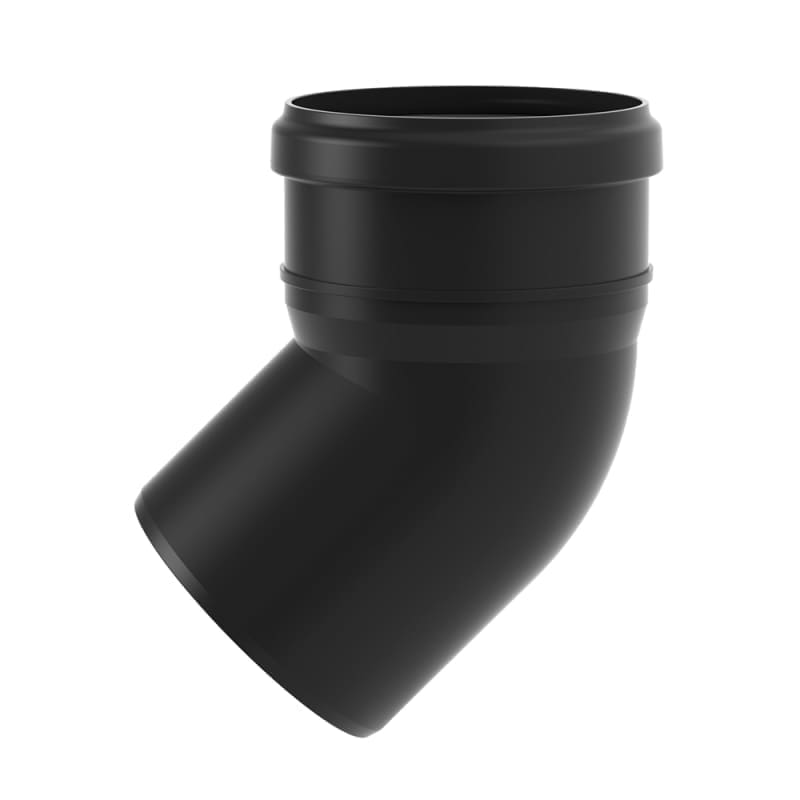

Used in interior drainage systems for the evacuation of domestic wastewater in gravity flow (where the tightness test is performed at max. 0.5 bar), where sound dampening from water discharge is desired.
Reference standard: EN 1451.
Black color, mass-colored, single-layer, made of PP with mineral additives.
Size range includes diameters from 32 mm to 160 mm.
Socket and gasket connection system, no special tools, adhesives or solvents required.
Acoustic performance is 16 dB for a flow rate of 2 l/s. Sound-absorbing properties are certified following measurements performed in the laboratories of the Fraunhofer Institute in Germany, according to EN 14366. The use of sound-absorbing clamps is recommended.
Fire behavior classification, in accordance with DIN 4102-1, is class B1. When passing through ceilings, we recommend using fire-resistant clamps as a flame propagation protection measure.
To reduce the noise level of interior drainage systems, we recommend:
• Selecting a pipe and fitting system with good sound-absorbing properties;
• Proper design of the installations;
• Correct installation of the system using appropriate products.

Material	PP
Tip articol	TOC
UM colete	PIECE
Cod CPV	CPV 44167300-1
Cantitate colet	1
Unghi	45 Grade
Diametru	110
Diametru(mm)
Cod vamal	39174000
Subclasa	FITTINGS PP SOUND ABSORBING SEWAGE PIPES
