Used for natural gas networks, as well as drinking water supply installations, made from
high-density polyethylene pipes with wall thicknesses corresponding to SDR 11 according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012.
Manufacturing method by injection molding from PE100, with the electrofusion fitting resistance embedded in the material with
dimensions corresponding to SDR 11 (ISO S8), according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012.
Welding voltage 40 V
4 mm connectors
Welding indicators with limited displacement
Integrated pipe fixing system
Welding must be performed by authorized welders with appropriate equipment and in compliance with the welding procedure.

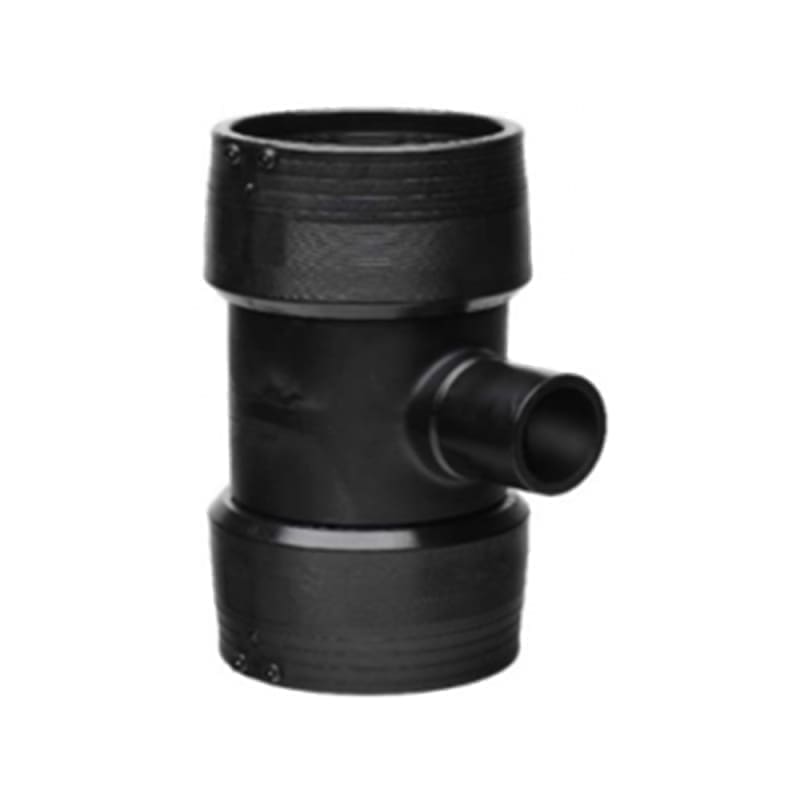

ELECTROFUSION REDUCING TEE D40/32 COMPOSITE
Used for natural gas networks, as well as drinking water supply installations, made from high-density polyethylene pipes with wall thicknesses corresponding to SDR 11 according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufacturing method by injection molding from PE100, with the electrofusion fitting resistance embedded in the material with dimensions corresponding to SDR 11 (ISO S8), according to EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage 40 V. 4 mm connectors. Welding indicators with limited displacement. Integrated pipe fixing system. Welding must be performed by authorized welders with appropriate equipment and in compliance with the welding procedure.
| UM colete | PIECE |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 1 |
| Diametru | 40/32 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
