Used for building natural gas networks, as well as drinking water supply installations, made of high-density polyethylene pipes with wall thicknesses corresponding to SDR 11, in accordance with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufactured by injection molding in PE100 molds, with the electrofusion fitting resistance embedded in the material, with dimensions corresponding to SDR 11 (ISO S8), in accordance with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage: 40 V. 4 mm connectors. Welding indicators with limited movement. Integrated pipe clamping system. Welding must be carried out by authorized welders using suitable equipment and in compliance with the welding procedure.

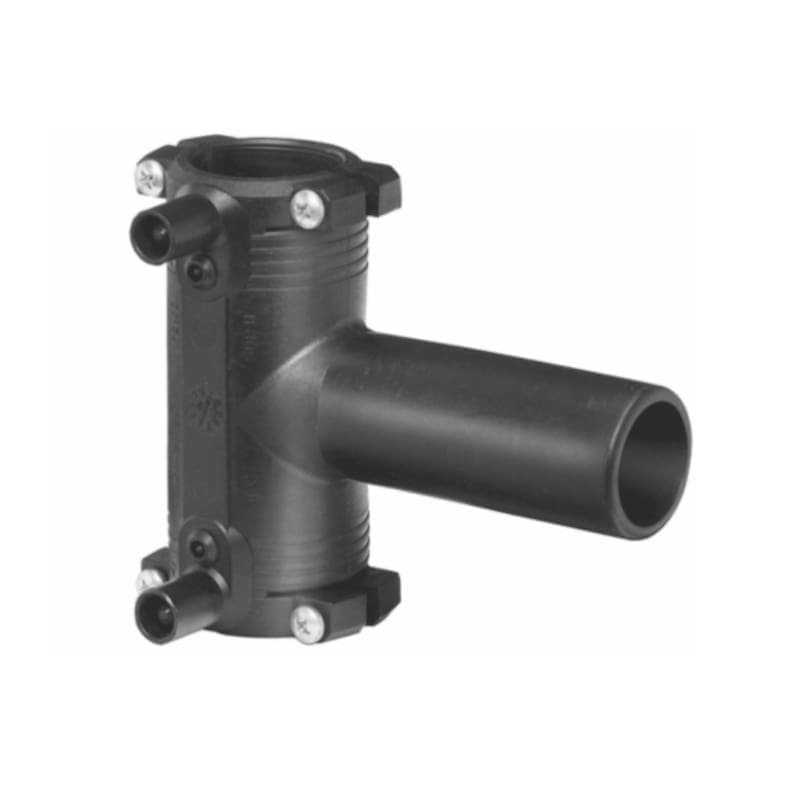

ELECTROFUSION TEE GF D. 63
Used for building natural gas networks, as well as drinking water supply installations, made of high-density polyethylene pipes with wall thicknesses corresponding to SDR 11, in accordance with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Manufactured by injection molding in PE100 molds, with the electrofusion fitting resistance embedded in the material, with dimensions corresponding to SDR 11 (ISO S8), in accordance with EN 12201-3:2011+A1:2012 and EN 1555-3:2010+A1:2012. Welding voltage: 40 V. 4 mm connectors. Welding indicators with limited movement. Integrated pipe clamping system. Welding must be carried out by authorized welders using suitable equipment and in compliance with the welding procedure.
| UM colete | BOX |
|---|---|
| Material | HDPE |
| Tip articol | TEE |
| Cod CPV | CPV 44167000-8 |
| Cantitate colet | 5 |
| Diametru | 63 |
| Cod vamal | 39174000 |
| Subclasa | GAS ELECTROFUSION FITTINGS |
