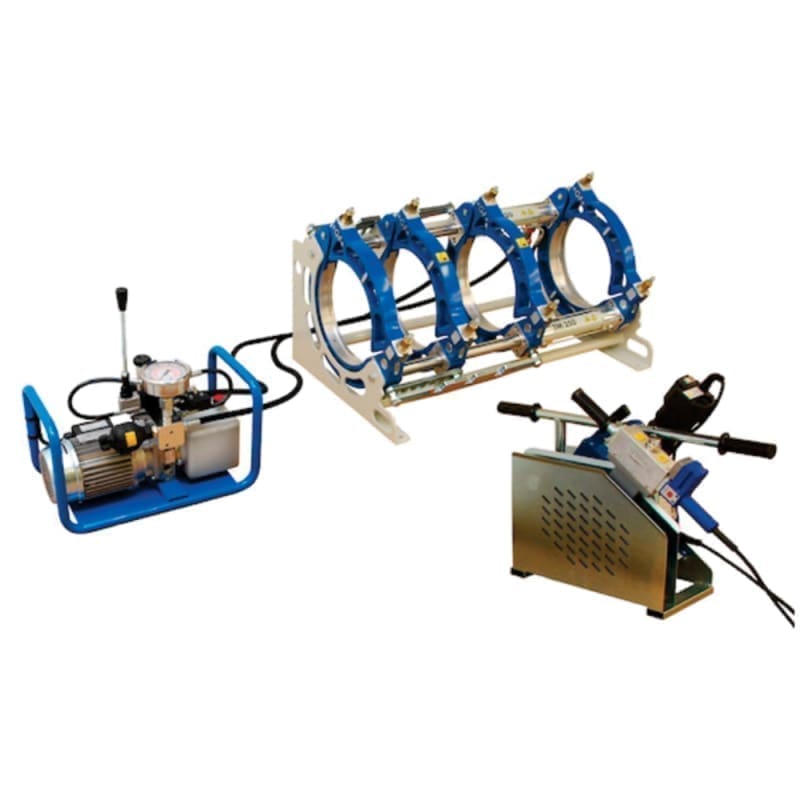

The Ecos 250 is a butt fusion machine for PE, PP, PB, and PVDF pipes and fittings with diameters ranging from 75 to 250 mm, suitable for workshops or trenches. It features a manually controlled hydraulic unit and a temperature controller integrated into the heating plate handle. Separate power supply is required for each component (hydraulic unit, facer, heating plate). Voltage/Power: 230V/3270W. Manually controlled hydraulic unit. Temperature controller integrated into the heating plate handle. Requires separate power supply for each component (hydraulic unit, facer, heating plate).

BASE MACHINE (Frame)
– Latest generation design, featuring a robust and bend-resistant machine frame.
– Good accessibility due to the 35° inclination.
– The sliding third clamp allows for fixing and welding elbows and tees without additional tools.
– The clamping jaws are fixed at the top and can be folded down. If necessary, the four clamps can be quickly removed.
– Simultaneous removal mechanism for the heating plate from the joint surfaces to optimize the welding process.
– Weight: ECOS 250 = 47 kg.

HYDRAULIC UNIT
– Compact construction with a protective frame.
– Valve for precise and fine adjustment of hydraulic pressure.
– Joystick control for the clamping jaws.
– Precision pressure gauge with vibration protection and an easy-to-read scale.
– Hydraulic accumulator for equalization pressure during the cooling phase.
– Integrated interface for the WR200 S ECO welding recorder.
– Maximum operating pressure: ECOS 250 = 160 bar.
– Weight: 22 kg.

FACER
– Device for facing one or both joint surfaces.
– Ergonomically placed transport handle to counterbalance the facer’s weight.
– Self-locking mechanism in the working position.
– Safety microswitch to prevent unintended startup.
– Weight: ECOS 250 = 14 kg.

HEATING PLATE
– High-performance heating element with electronic temperature control.
– High-quality, long-lasting non-stick PTFE coating.
– Temperature indicator located in the handle.
– Weight: ECOS 250 = 8 kg.
– Power supply: 230V/ ECOS 250 = 2000 W.

STAND
– For safe storage of the facer and heating plate.
– Weight: ECOS 250 = 8 kg.

The welding machines are delivered on a pallet and in a cardboard box for component protection during transport. According to regulations, an annual revision is required. The welding machines allow for recording and printing welding protocols only when equipped with the WR 200 S ECO recorder (code 53512000250), which is supplied upon request. Reducer inserts are supplied upon request. The set of reducer inserts includes 4 wide and 4 narrow aluminum cast inserts for each dimension. The wide inserts also serve to re-round ovalized pipe ends.
