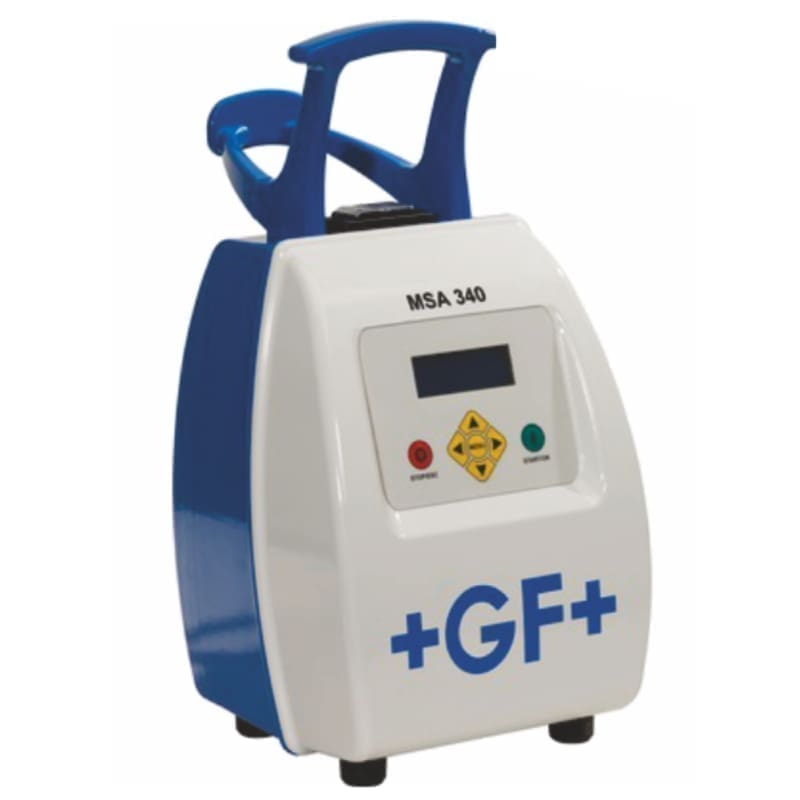

High-performance machine that provides all welding and traceability data (ISO 12176), including GPS coordinates of each weld. Internal memory has a capacity of 1000 weld records, for data transfer the unit is equipped with a USB interface. The record is transferred in CSV or PDF format, formats easily managed with common and free PC software applications. The intuitive operating menu ensures the complete welding process. For entering fusion data the machine is equipped with a scanner. The entire welding process is controlled and regulated, with energy compensation according to ambient temperature and cooling time. Robust aluminum housing, with conveniently wound cable and carrying handle. The machine is suitable for series joints. Delivery package: transport case, scanner cover, 2 pairs of angle adapters 4.0 mm and 4.7 mm, operating instructions and configuration diagram. -Operating temperature: -10 C +45 C -Supply voltage: 230V (190V – 265V) – Supply frequency: 50 (40 – 70 Hz) -Welding voltage: 8-48 V -Max. welding current: 110 A (max) -Generator power: min. 3.5 kVA ((5.0 kVA for fittings d)200mm) -Protection: Class 1 / IP 65 -Power cable: 4 m -Welding cable: 4 m -USB interface type A -Dimensions: 280 x 480 x 240 mm -Weight: approx. 19 kg -Display: LCD (20 alphanumeric characters x 4 lines), adjustable contrast -Display language: 11
