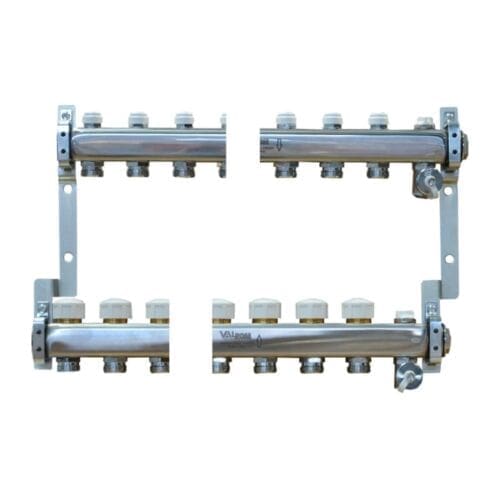

QUADRO VALThermio EUROCON Distributor/Manifold Kit, 7 Circuits, 1”

Name: QUADRO VALThermio EUROCON Distributor/Manifold Kit, 7 Circuits, 1''
Rating: 5 (1 reviews)

This system is utilized in underfloor heating/cooling installations, as well as with radiator heating systems. It facilitates the distribution of the thermal agent to the underfloor heating coils and radiators, and the chilled agent for underfloor cooling. The kit includes: – 1 distributor with flow regulators – 1 manifold with thermostatic valves featuring an electric control option (thermoelectric head/actuator) – 2 brackets for the distributor/manifold. The flow regulator is a balancing valve for flow rate and pressure drop, according to project specifications. To ensure correct operation, please observe the flow direction. For flow visualization, a PexKIT FLOW METER 3/4″ (0.5-2.4 L/MIN), Valrom Code 64199000025, can be installed on the return line (manifold with thermostatic valves) for each circuit. Max. differential pressure: 0.8 bar. Max. working pressure: 10 bar. Max. working temperature: 90°C. Max. ambient temperature: 50°C. Dimensional characteristics: H = 288 mm, L = 50 mm, S = 25 mm, h1 = 54 mm, W = 210 mm, P = 77 mm, Ltot = 387 mm, L = 362 mm.

SKU: 66430701600 Category: HEATING COLLECTORS-DISTRIBUTORS

Description Information Similar products

This system is utilized in underfloor heating/cooling installations, as well as with radiator heating systems. It facilitates the distribution of the thermal agent to the underfloor heating coils and radiators, and the chilled agent for underfloor cooling. The kit includes: - 1 distributor with flow regulators - 1 manifold with thermostatic valves featuring an electric control option (thermoelectric head/actuator) - 2 brackets for the distributor/manifold. The flow regulator is a balancing valve for flow rate and pressure drop, according to project specifications. To ensure correct operation, please observe the flow direction. For flow visualization, a PexKIT FLOW METER 3/4" (0.5-2.4 L/MIN), Valrom Code 64199000025, can be installed on the return line (manifold with thermostatic valves) for each circuit. Max. differential pressure: 0.8 bar. Max. working pressure: 10 bar. Max. working temperature: 90°C. Max. ambient temperature: 50°C. Dimensional characteristics: H = 288 mm, L = 50 mm, S = 25 mm, h1 = 54 mm, W = 210 mm, P = 77 mm, Ltot = 387 mm, L = 362 mm.
