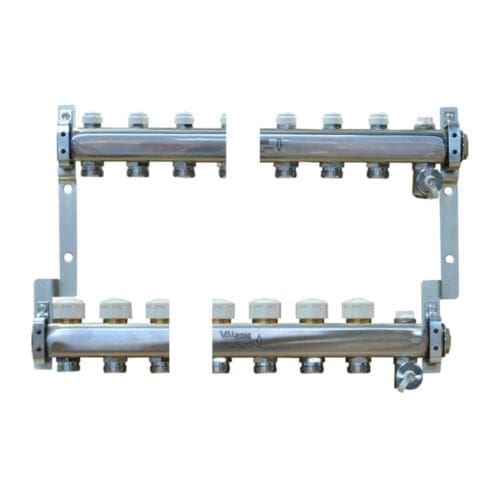

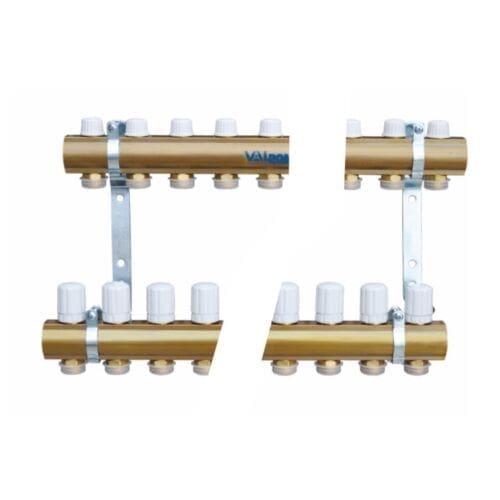

This system is used in underfloor heating/cooling installations, as well as with radiator heating systems. It distributes the heating medium to the underfloor heating coils and radiators, and the cooling medium for underfloor cooling. Includes: – 1 distributor with flow meters – 1 collector with thermostatic valves with electric control option (thermoelectric head/actuator) – 2 supports for the distributor/collector. The flow meter is a balancing valve for flow rate and pressure drop, according to project specifications. To ensure correct operation, please observe the flow direction. For flow visualization, a PexKIT FLOW METER 3/4″ (0.5-2.4 L/MIN) Valrom Code 64199000025 can be installed on the return (collector with thermostatic valves) for each circuit. Max. differential pressure: 0.8 bar. Max. working pressure: 10 bar. Max. working temperature: 90°C. Max. ambient temperature: 50°C. Dimensional characteristics: H = 288 mm, L = 50 mm, S = 25 mm, h1 = 54 mm, W = 210 mm, P = 77 mm, Ltot = 437 mm, L = 412 mm.
