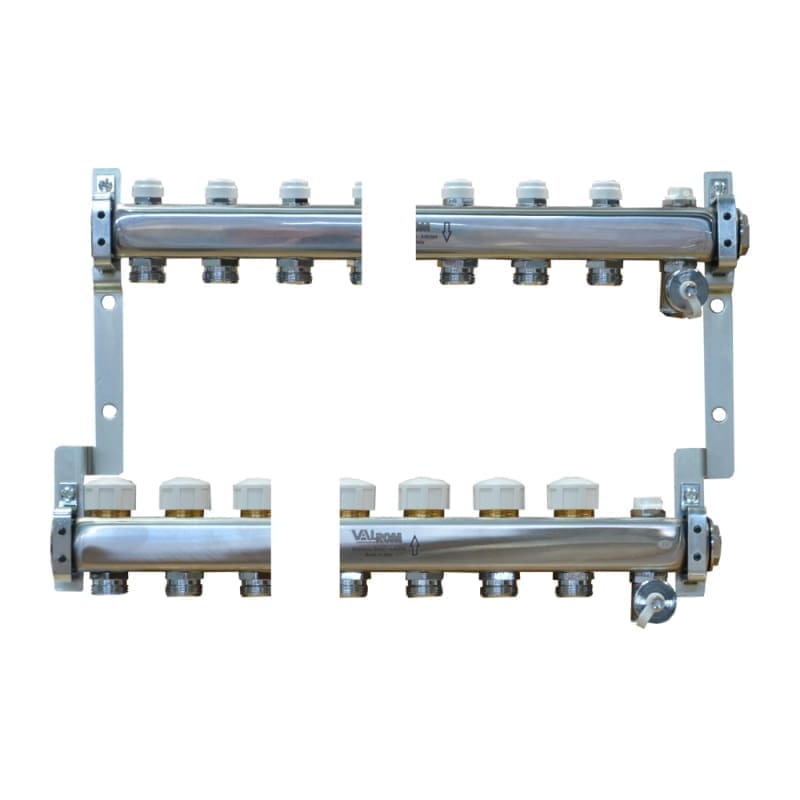

Used in underfloor heating/cooling systems as well as radiator heating. Distributes the heating agent in the coils for underfloor heating and radiators, as well as the cooling agent for underfloor cooling. Includes: – 1 manifold bar with flow meters. – 1 manifold bar with thermostatic valves – electric control option (thermostatic head/actuator) – 2 pcs manual air vent – 2 pcs drain valves – 2 pcs 1″ plug – 2 pcs manifold/distribution supports The detentor is a balancing valve for flow rate and pressure drop according to project specifications. For flow visualization in underfloor heating, a PexKIT 3/4″ FLOW METER (0.5-2.4L/MIN) Valrom Code 64199000025 can be mounted on the return (manifold with thermostatic valves) on each circuit. Manufacturing standard: UNI EN ISO 9001:2015 Certification Manifold/distribution body: AISI 304 Stainless Steel Thread: ISO 228/1. Max. temperature: 100C. Max. pressure: 10 bar. Max. differential pressure: 1 bar. Connection: G1 thread with flat gasket. Thermostatic valve body: brass. Dimensions: B = 44 [mm] C = 73.5 [mm] E = 27 [mm] L = 629 [mm].
