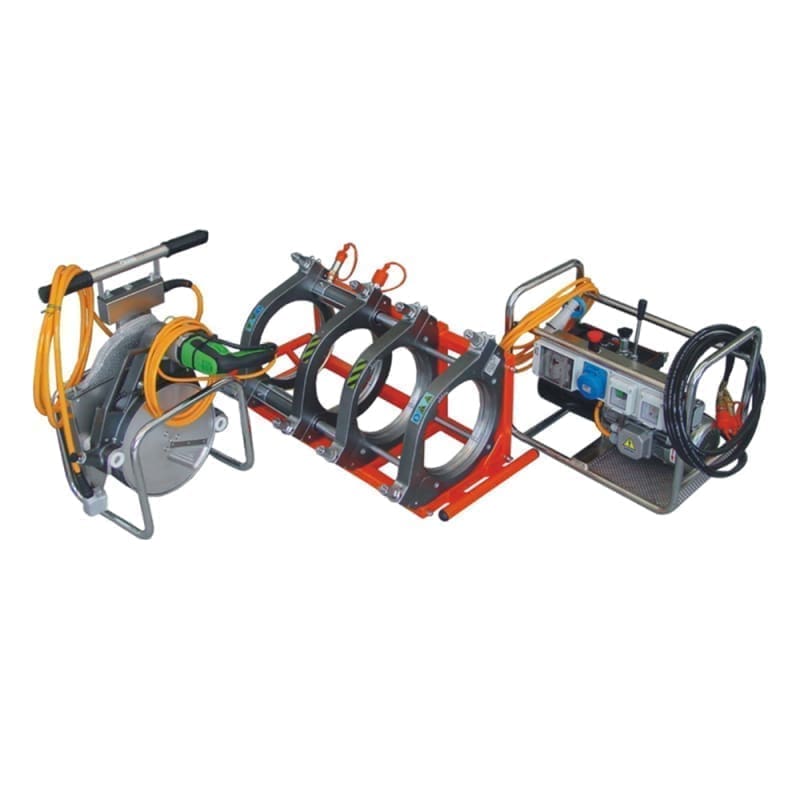

Hydraulic self-aligning butt fusion welding machine suitable for welding pressurized pipes for water, gas, and other fluids, with diameters between 200–500 mm. Built to international standards (UNI 10565, ISO 12176-1), DELTA 500 includes: -machine body: a support frame, four clamps/jaws and two hydraulic cylinders with quick-connect couplings, -removal device: helps remove the heating plate during the welding process, -heating plate with a separate thermometer to check the working temperature, -removable electric facer for preparing pipe ends and/or fittings. Includes a safety micro-switch and a thermal cut-out. The facer’s plastic control box is protected by a metal frame and equipped with a quick-release system to quickly remove the facer from the machine body. -hydraulic unit: closes and opens the clamps via a handle, pressure relief valve and maximum pressure (also useful for the Dual Pressure welding procedure), hydraulic hoses for connection with quick couplers and a timer (for heating and welding phases). The welding machine is preset for connecting the optional THE INSPECTOR electronic controller. -Digital box for electrical connections with high-precision temperature control (1) Digital Dragon, protected by a special housing and equipped with a readout display and buttons for temperature adjustment. -Support for facer/heating plate. DELTA 500 can weld fittings such as elbows, tees, Y-branches, and long-construction flange ends. Technical data: -Materials: HDPE, PP, PP-R. -Working range: 200–500 mm. -Power supply: 230V. -Max absorbed power: 7,950 W. -Operating temperature: 180–280 °C. -Operating pressure: 0–150 bar. -Ambient temperature: -10–40 °C. -Time to reach welding temperature: less than 20 minutes. -Machine body dimensions: 1,265 x 790 x 780 mm. -Body weight/standard frame machine weight: 230/408 kg. -Required generator power: 12 kVA. On request (optional accessories): reduction set, short-version flange-end welding adapter, guide rollers, THE INSPECTOR electronic controller, controller connection cables, trolley, crane, component protective cases. Welding machines must be used in accordance with applicable regulations by trained and authorized personnel. The machine is accompanied by operating and maintenance manual. According to regulations, inspection is required at 1 year.
