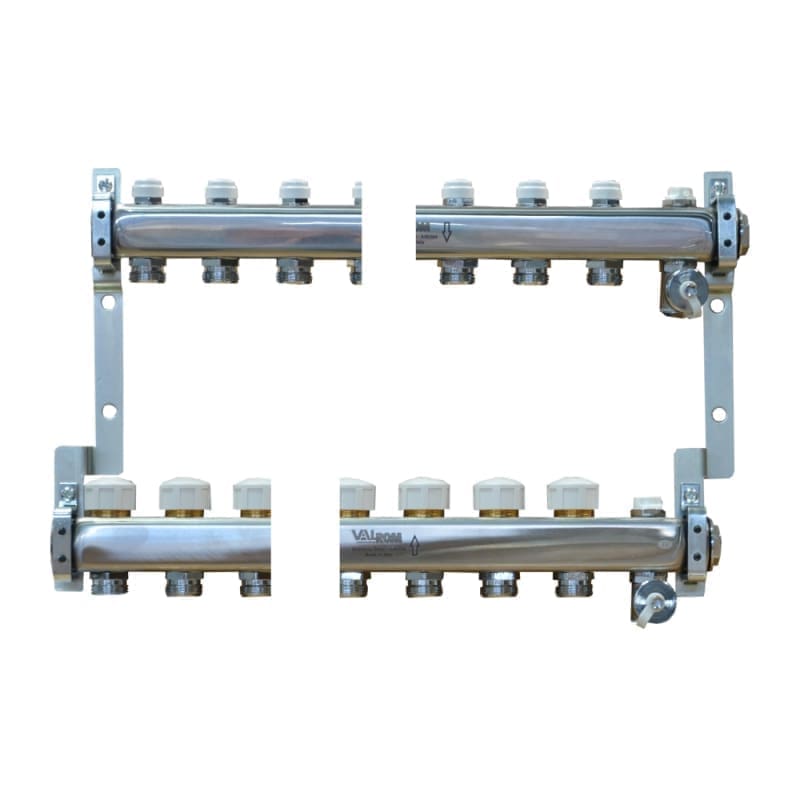

Used in underfloor heating/cooling systems as well as radiator heating. Distributes the heating agent in the coils of underfloor heating and radiators, as well as the cooling agent in the case of underfloor cooling. Includes: – 1 manifold bar with flow meters. – 1 manifold bar with thermostatic valves – electric control option (thermostatic head/actuator) – 2 pcs manual air vent – 2 pcs drain valves – 2 pcs 1″ plug – 2 pcs manifold/collector brackets The detentor is a balancing valve for flow rate and pressure drop according to project specifications. For flow visualization in underfloor heating, a FLOW METER PexKIT 3/4″ (0.5-2.4L/MIN) Valrom Code 64199000025 can be mounted on the return (manifold with thermostatic valves) on each circuit. Manufacturing standard: UNI EN ISO 9001:2015 Certification Manifold/collector body: AISI 304 Stainless Steel Thread: ISO 228/1. Max. temperature: 100C. Max. pressure: 10 bar. Max. differential pressure: 1 bar. Connection: G1 thread with flat gasket. Thermostatic valve body: brass. Dimensions: B = 44 [mm] C = 73.5 [mm] E = 27 [mm] L = 179 [mm].
