How does aquaPur® work?

AquaPur® performs 5 functions:

1. Buffer Tank
Depending on the chosen capacity, aquaPur® provides a buffer water volume of 300, 500, or 750 liters. This quantity ensures consumption during periods when water supply is interrupted or reduces the number of pump starts from the supply. Sizing is done considering that, on average, a person consumes approximately 150 liters of water daily. This volume must be increased if you use water from the buffer tank for other activities (garden watering, etc.).

2. Power Supply Control (Mains or Pump)
AquaPur can be connected to a water mains or a well. For mains supply, the opening/closing command for the inlet is performed by a mechanical float. If the water level drops below the minimum, the float opens and closes when the maximum level is reached. If the water source is a well, an automatic control device, Brio 200M, will be added to the inlet. The controller automates the well pump command by detecting a pressure drop in the network (float open, water level below minimum). The pump starts, the water level rises until the float closes. The controller detects the maximum pressure in the network and stops the pump.

3. Drinking Water Supply
AquaPur is equipped with a submersible pump – for water supply to the consumption network and automatic pressure maintenance – via a submersible pump. The pump has an integrated electronic automatic control device for starting and stopping. When a pressure drop is detected (an open tap), the pump starts automatically and maintains pressure in the system (it will deliver the necessary water to any point in the network). When consumption ceases, the pressure increases, and the pump stops automatically.

4. Mechanical Filtration
The mechanical filter consists of a support and a wound polypropylene thread cartridge, designed to filter particles larger than 5 microns suspended in the water, thereby reducing turbidity, and at the outlet, an activated carbon filter for improving water taste and odor.

5. Protection
Silver's ability to inhibit microorganism growth has been known since antiquity, used to ensure water potability. The active agent is a mixture of inorganic Ag-based compounds embedded in the material. In the presence of water, silver ions are slowly released and inhibit microorganism growth by interfering with cellular mechanisms responsible for multiplication. The active Ag technology offers a dual effect: it inhibits microorganism growth on the tank surface and preserves the potability of the stored medium. Its action extends to a very wide range of microorganisms – over 25 classes of bacteria, algae, fungi, molds, etc. Studies conducted in specialized institutes (Cantacuzino Institute, Bucharest; Hygiene Institut des Ruhrgebiets Trink und Badewasserhygiene, Gelsenkirchen, Germany, Industrial Microbiological Services LTD, Stafford, England) have shown that within the first 24 hours of contact, aquaPur® ensures a reduction of approximately 99.5% of Staphylococcus Aureus, Pseudomonas Aeruginosa, Escherichia Coli, and Legionella Pneumophila cultures.

Download Aquapur Systems and Tanks Catalog
Download Filtration Catalog

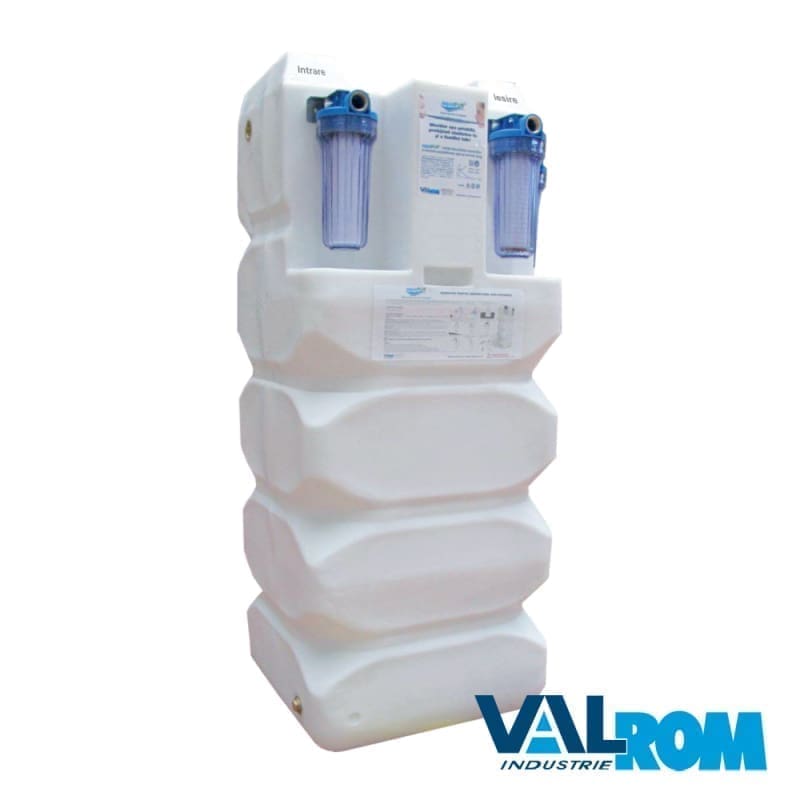

Description: This is a filtration, storage, and pumping system consisting of a tank, a mechanical filter, an activated carbon filter, a mechanical float, a pumping system, and an overflow system. The tank is a compact, vertical monobloc type, composed of an outer layer of polyethylene with good mechanical resistance, an intermediate layer of expanded polyethylene with anti-condensation properties, and an inner layer of polyethylene containing inorganic compounds with active silver, possessing antimicrobial characteristics. It is used for storing potable water. The mechanical filter consists of a support and a wound polypropylene thread cartridge, designed to filter particles larger than 5 microns suspended in the water, thereby reducing turbidity, and at the outlet, an activated carbon filter for improving water taste and odor. The mechanical float is made of polycarbonate with a servo-controlled closing mechanism. The pumping system consists of a DIVERTRON 1000 submersible electric pump with an integrated electronic system, featuring a filter on the suction side and a check valve on the discharge. It has a maximum power of 0.9 kW, a maximum pumping head of 36 m, a maximum flow rate of 95 l/min, and a mass of 11 kg. The overflow system is a safety system that evacuates water in case of mechanical float failure and malfunction of the tank supply system's control sensor. It consists of a 32 mm diameter PPR pipe and a vertical check valve.

UM colete	PIECE
Ambalare	CARDBOARD BOX
Echipament cu PIF	NO
Tip articol	SYSTEM
Garantie 2	0 Months
Cod CPV	CPV 44611500-1
Cantitate colet	1
Durata medie de utilizare	3 Years
Deseuri Electronice	4.4
Perioada garantie	24 Months
Cod vamal	84212100
Subclasa	VALPurio WATER FSP SYSTEMS
