This product is utilized in internal drainage systems for the discharge of domestic wastewater in gravity flow applications (where the leak test is performed at a maximum of 0.5 bar), particularly for building risers where sound attenuation of water discharge from upper floors is desired.
Reference standard: EN 1451.

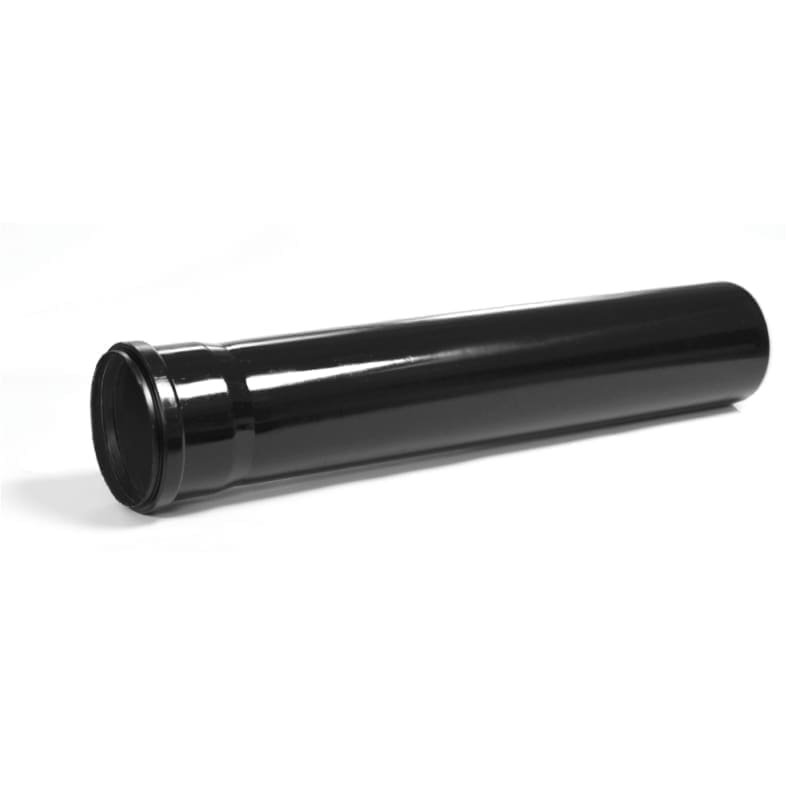

The pipes, in furnace black, are manufactured from PP with mineral additives, featuring a triple-layer wall construction, and are equipped with a socket and gasket at one end.
The range of dimensions includes diameters from 40 mm to 160 mm, with lengths between 250 mm and 3000 mm.
Acoustic performance is 16 dB for a flow rate of 2 L/s. The sound-absorbing properties are certified following measurements conducted at the Fraunhofer Institute laboratories in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
To reduce the noise level of internal drainage systems, we recommend:
• Selecting a pipe and fitting system with good sound-absorbing properties;
• Ensuring correct system design;
• Installing the system correctly using appropriate products.

Ambalare	PACHET
Material	PP
Tip articol	TUB
UM colete	BUNDLE
Cod CPV	CPV 44163130-0
Lungime	2 m
Cantitate colet	15
Durata estimata de viata	50 Years
Perioada garantie	60 Months
Diametru	160
Diametru(mm)
Cod vamal	39172210
Subclasa	SOUND-ABSORBING PP PIPES
