Sound-absorbing, double-layer pipe, made of PP-H with mineral additives, used in internal sewage systems for civil constructions where noise attenuation from water flow through discharge risers is desired, to enhance acoustic comfort. – Diameter range: (fi)40, (fi)50, (fi)75, (fi)110. – Acoustic performance: 16 dB, according to SR EN 14366. – Compliance: EN 1451 – Material: PP-H with mineral additives – Type: Double-layer, white interior, black exterior. – Maximum operating temperature: +95°C, intermittently. – Fire resistance: Class B2, according to DIN 4102, self-extinguishes within a maximum of 20 seconds after flame removal. – Color: RAL 9005 (jet black) – Connection: Socket and gasket.

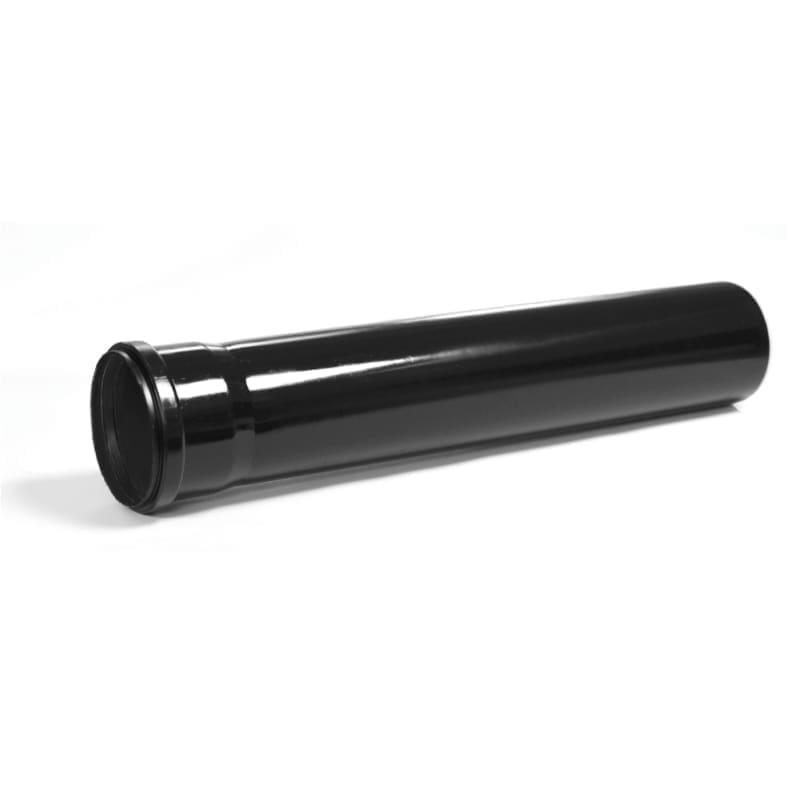

VALFono FONO TUBE D. 50 with 1 Socket L2000
This product is utilized in internal sewage systems for the discharge of domestic wastewater under gravity flow conditions (where the leak test is performed at a maximum of 0.5 bar), particularly for building risers, where sound attenuation of water discharge from upper floors is desired.
Reference Standard: EN 1451.
The tubes, in furnace black, are made of PP with mineral additives, featuring a triple-layer wall construction, and are equipped with a socket and gasket at one end.
The range of dimensions includes diameters from 40 mm to 160 mm, with lengths between 250 mm and 3000 mm.
Acoustic performance is 16 dB for a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements conducted in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
To reduce the noise level of internal sewage systems, we recommend:
• Selecting a system of pipes and fittings with good sound-absorbing properties;
• Ensuring correct system design;
• Installing the system correctly using appropriate products.
Reference Standard: EN 1451.
The tubes, in furnace black, are made of PP with mineral additives, featuring a triple-layer wall construction, and are equipped with a socket and gasket at one end.
The range of dimensions includes diameters from 40 mm to 160 mm, with lengths between 250 mm and 3000 mm.
Acoustic performance is 16 dB for a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements conducted in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
To reduce the noise level of internal sewage systems, we recommend:
• Selecting a system of pipes and fittings with good sound-absorbing properties;
• Ensuring correct system design;
• Installing the system correctly using appropriate products.
| Ambalare | PACHET |
|---|---|
| Material | PP |
| Tip articol | TUB |
| UM colete | BUNDLE |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163130-0 |
| Lungime | 2 m |
| Cantitate colet | 15 |
| Diametru | 50 |
| Durata estimata de viata | 50 Years |
| Diametru(mm) | |
| Perioada garantie | 60 Months |
| Cod vamal | 39172210 |
| Subclasa | SOUND-ABSORBING PP PIPES |
