Sound-absorbing pipe, double-layer, made of PP-H with mineral additives, used in interior sewage systems for civil constructions, where dampening of noise produced by water flow through discharge stacks is desired, in order to increase acoustic comfort. – Diameter range: (fi)40, (fi)50, (fi)75, (fi)110. – Acoustic performance: 16 dB, according to SR EN 14366. – Compliance: EN 1451 – Material: PP-H with mineral additives – Type: double-layer, white interior, black exterior. – Maximum operating temperature: +95°C, intermittent. – Fire resistance: class B2, according to DIN 4102, self-extinguishing within maximum 20 seconds after flame removal. – Color: RAL 9005 (jet black) – Connection: socket and gasket.

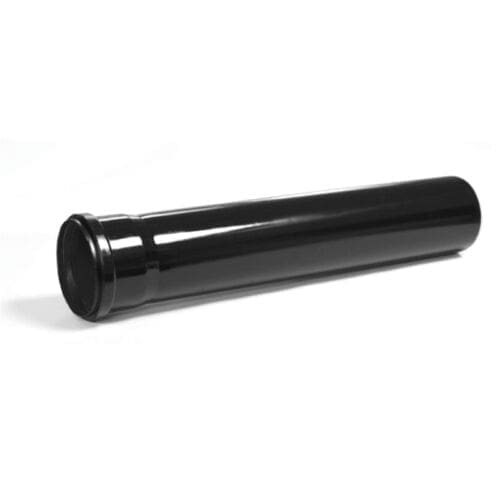

VALFono FONO PIPE D.110 WITH 1 SOCKET L750
Used in interior sewage systems for the evacuation of domestic wastewater in gravity flow regime (where the tightness test is performed at max. 0.5 bar), especially for building stacks, where sound dampening from water discharge from upper floors is desired.
Reference standard: EN 1451.
The pipes, in jet black color, are made of PP with mineral additives, in triple-layer wall construction, fitted with a socket and gasket at one end.
The size range includes diameters from 40 mm to 160 mm, with lengths between 250 and 3000 mm.
Acoustic performance is 16dB for a flow rate of 2 l/s. Sound-absorbing properties are certified following measurements performed in the laboratories of the Fraunhofer Institute in Germany, according to EN 14366. The use of sound-absorbing clamps is recommended.
To reduce the noise level of interior sewage systems, it is recommended to:
• Choose a system of pipes and fittings with good sound-absorbing properties;
• Ensure correct design of the installations;
• Correctly install the system using appropriate products.
Reference standard: EN 1451.
The pipes, in jet black color, are made of PP with mineral additives, in triple-layer wall construction, fitted with a socket and gasket at one end.
The size range includes diameters from 40 mm to 160 mm, with lengths between 250 and 3000 mm.
Acoustic performance is 16dB for a flow rate of 2 l/s. Sound-absorbing properties are certified following measurements performed in the laboratories of the Fraunhofer Institute in Germany, according to EN 14366. The use of sound-absorbing clamps is recommended.
To reduce the noise level of interior sewage systems, it is recommended to:
• Choose a system of pipes and fittings with good sound-absorbing properties;
• Ensure correct design of the installations;
• Correctly install the system using appropriate products.
| Ambalare | PACHET |
|---|---|
| Material | PP |
| Tip articol | TUB |
| UM colete | BUNDLE |
| Tara origine preferentiala | EU |
| Lungime | 0.75 m |
| Cod CPV | CPV 44163130-0 |
| Cantitate colet | 10 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 110 |
| Diametru(mm) | |
| Cod vamal | 39172210 |
| Subclasa | SOUND-ABSORBING PP PIPES |
