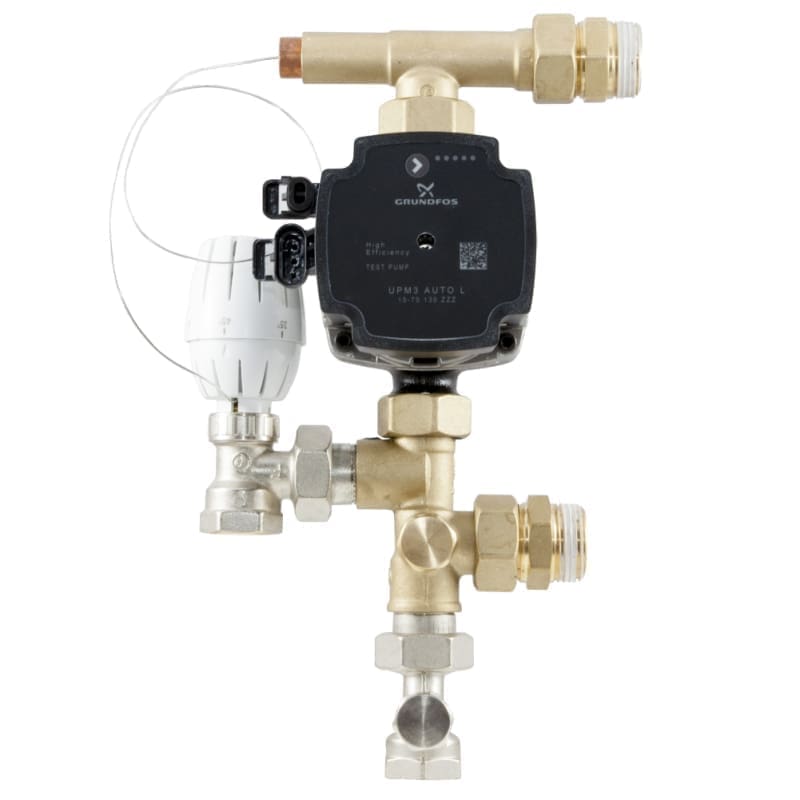

Use: Used in underfloor heating systems as well as mixed systems (radiators/underfloor heating) to draw the heating medium from the primary heating circuit at high temperature (≥50°C) and supply it to a secondary circuit at a lower temperature (20-45°C). Maximum liquid temperature: 80°C Maximum system pressure: 10 bar Fluid temperature range: 20-50°C Pump connection distance: 130 mm Pump connection: G1" Manifold flow/return connection: G1" By-pass: 0-800 l/h Qmax at ΔP = 3 m H2O: 2,800 l/h Insert photo here Link 1 Component elements: 1. Thermostatic valve: 3/4" 2. Straight return valve: 3/4" 3. Thermostatic head with immersion sensor 4. Adjustment valve: 3/4" 5. Circulation pump: Grundfos UPM3 AUTO L 15/70

UM colete	PIECE
Subclasa	HEATING COMPONENTS
DZP	FROM
Tip articol	MIXING KIT
Cod CPV	CPV 44115200-1
Cantitate colet	1
Deseuri Electronice	5.8
Cod vamal	84039090
