1. Application Area

_ Grease separators are designed to retain fats and oils from domestic wastewater or wastewater originating from the food industry, butcheries, canteens, etc. Their purpose is to protect sewage networks from clogging. Grease separators are installed on the sewage network (branch) in sections where wastewater containing fats and oils is present, as close as possible to their point of origin. The applications for which it is configured comply with EN 1825-2.

2. Technical Specifications

_ The operation of the grease separator is based on the gravitational principle. Wastewater containing fats and vegetable oils enters the separator through a calming connection, without affecting the separation process. Inside the separator, a baffle system creates spaces such that the water's flow through them ensures optimal separation of light particles (fats and oils), which rise to the water's surface, and heavy particles, which settle at the bottom of the separator. Thus, the water exiting the separator can be transported through the public or private sewage system. _ The grease separator is sized and verified according to EN 1825-1.

3. Packaging, Handling, Transport, and Storage

_ Separators are delivered unpackaged. WARNING! Do not disassemble the separator.

_ When moving from one place to another, contact with surfaces that may scratch or

damage the product (dragging) is prohibited.

Nominal Size (NG), [l/s] 10

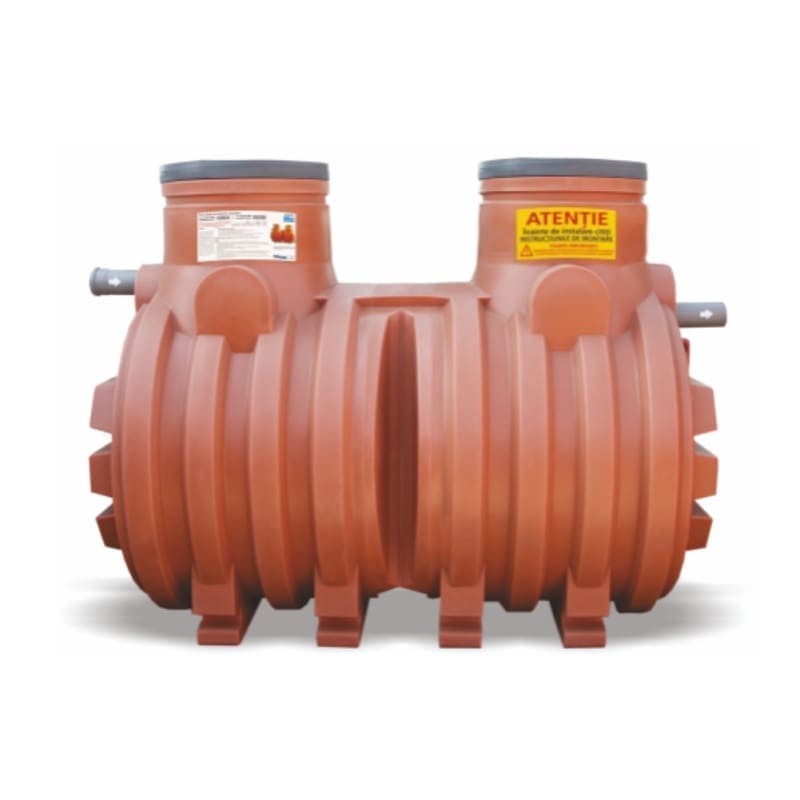

Shape Horizontal Cylindrical

Dimensions (O x L × H), [mm] 2650 x 1400 x 1760

Access Zones: 2 x O 630 mm

Connections DN, [mm] 200

Inlet/Outlet Connection Height, [mm] 360/400

Separator Volume, [l] 3000

Sludge Trap Volume, [l] 1000

Grease Storage Capacity, [l] 700

Maximum Grease Level, [mm] 300

Net Weight, [kg] 217

Material Polyethylene

Cover Polyethylene, non-trafficable

Code 48910001000


4. Warranty

_ Lifespan: 30 years, provided transport, storage, handling, installation, and maintenance instructions are followed.

_ Warranty: 2 years from the invoice date. The warranty covers manufacturing defects and does not cover

defects due to faulty transport, handling, storage, or installation.


OPTIONAL ACCESSORIES - These are supplied upon request based on installation requirements

_ A: for height adjustment of the PE cover in non-trafficable areas – green spaces, maximum

60 cm:

48710000604 EXTENSION L=600mm *

47901000125 MANHOLE EXTENSION FIXING PART
47901000116 MANHOLE SEALING GASKET DN640

_ B. for height adjustment of the cast iron cover with frame in non-trafficable or

trafficable areas, maximum C250 – EN 124, maximum 60 cm:

47901000216 EXTENSION <KompactKIT> L=600mm*

47901000125 MANHOLE EXTENSION FIXING PART

47901000116 MANHOLE SEALING GASKET DN640

Cover with frame: The dimensions of the cast iron cover must be compatible with the extension (inner diameter 690 mm/outer diameter 870 mm)
