PE100 SDR11 pipes (GasKIT) are used in external natural gas transmission networks with a maximum operating pressure MOP = 10 bar (reference temperature 20°C). The pipes are installed buried in the ground. The pipes are made of high-density polyethylene, type PE100. The raw material is a homogeneous blend of polyethylene, antioxidants, pigments, and UV radiation stabilizers. The pipes are black and have yellow longitudinal co-extruded stripes. The average outside diameters, deviation from circularity (ovality), and pipe tolerances comply with SR EN 1555-2:2011. The wall thickness and wall thickness tolerances comply with the requirements of SR EN 1555-2:2011.

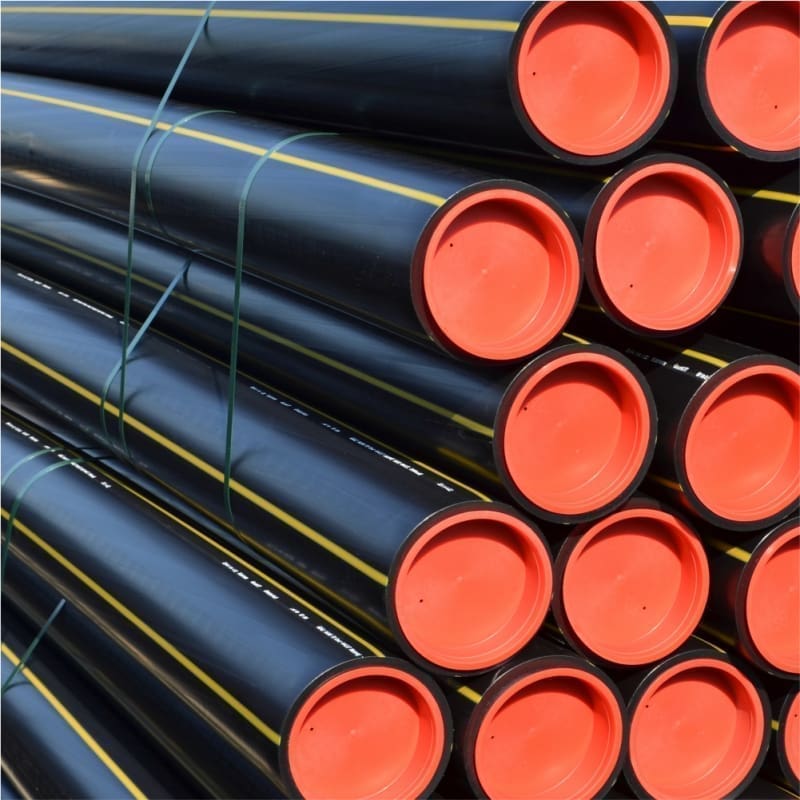

VALGasio PE100 PIPE Ø315 × 28.6 mm SDR11 13 m BAR
PE100 SDR11 pipes (GasKIT) are used in external natural gas transmission networks with a maximum operating pressure MOP = 10 bar (reference temperature 20°C). The pipes are installed buried in the ground. The pipes are made of high-density polyethylene, type PE100. The raw material is a homogeneous blend of polyethylene, antioxidants, pigments, and UV radiation stabilizers. The pipes are black and have yellow longitudinal co-extruded stripes. The average outside diameters, deviation from circularity (ovality), and pipe tolerances comply with SR EN 1555-2:2011. The wall thickness and wall thickness tolerances comply with the requirements of SR EN 1555-2:2011.
| Material | PE100 |
|---|---|
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163100-1 |
| Cantitate colet | 1 |
| SDR | 11 |
| Lungime | 13 m |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 315 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
| Subclasa | PEHD GAS PIPES D125-315 |
