GasPro pipes are used in natural gas supply networks with a maximum operating pressure MOP=10 bar (reference temperature 20°C). GasPro pipes were designed to: improve handling, storage and installation conditions and reduce the costs associated with these operations. The core consists of a high-density polyethylene PE100 pipe for gas networks in accordance with the requirements of product standards and national regulations in force. A polypropylene (PP) layer with additives is applied to the exterior during the manufacturing phase (coextrusion) to increase resistance to scratching and penetration. Polypropylene is approximately 3 times more resistant than polyethylene and any damage beyond the acceptable limit is easy to observe due to the different color of the protective layer. This layer serves to protect the pipe from mechanical stress and UV radiation, from the moment of manufacture until the end of its service life.

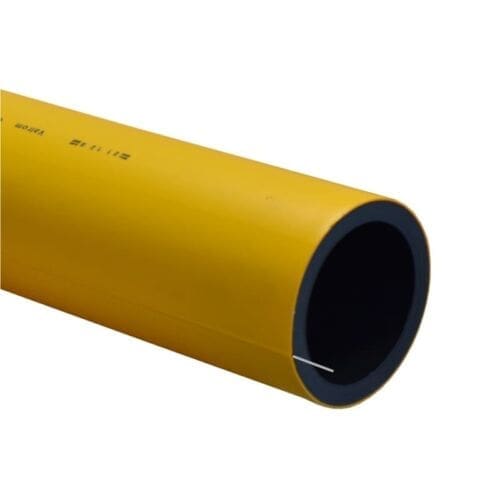

VALGasio PRO PE100RC PIPE WITH PROTECTIVE COATING D.110 SDR11 BAR 13M
GasPro pipes are used in natural gas supply networks with a maximum operating pressure MOP=10 bar (reference temperature 20°C). GasPro pipes were designed to: improve handling, storage and installation conditions and reduce the costs associated with these operations. The core consists of a high-density polyethylene PE100 pipe for gas networks in accordance with the requirements of product standards and national regulations in force. A polypropylene (PP) layer with additives is applied to the exterior during the manufacturing phase (coextrusion) to increase resistance to scratching and penetration. Polypropylene is approximately 3 times more resistant than polyethylene and any damage beyond the acceptable limit is easy to observe due to the different color of the protective layer. This layer serves to protect the pipe from mechanical stress and UV radiation, from the moment of manufacture until the end of its service life.
| Material | PE100 |
|---|---|
| Tip articol | TUB |
| DZP | FROM |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163100-1 |
| Cantitate colet | 1 |
| SDR | 11 |
| Lungime | 13 m |
| Durata estimata de viata | 50 Years |
| Diametru | 110 |
| Diametru(mm) | |
| Perioada garantie | 120 Months |
| Cod vamal | 39172110 |
| Subclasa | PEHD-RC PRO gas pipes D50–110 |
