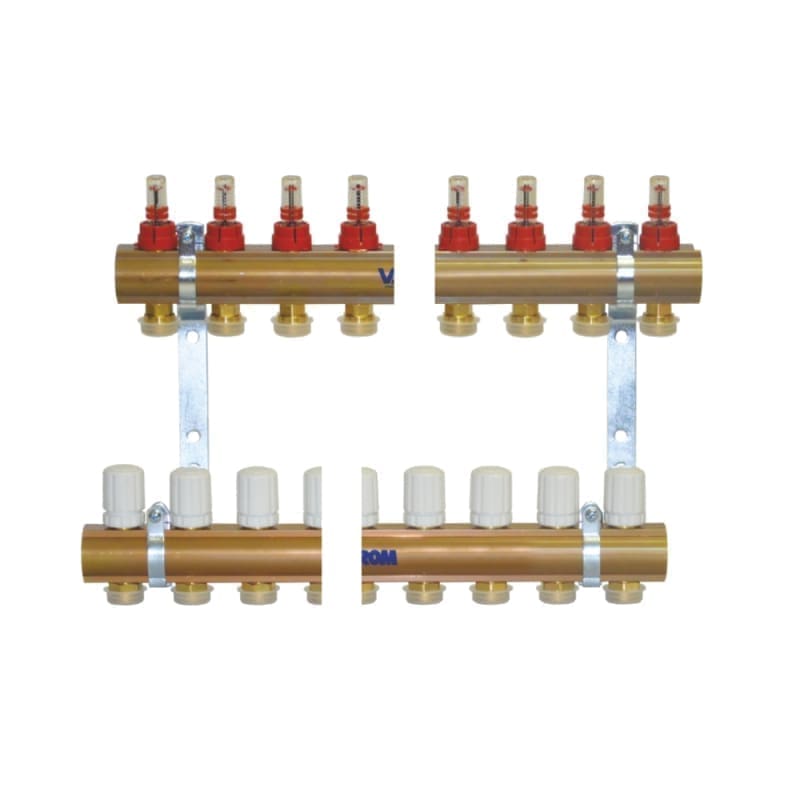

VALThermio EUROCON Manifold Kit with Flow Meters, 5 Circuits, 1″

Name: VALThermio EUROCON Manifold Kit with Flow Meters, 5 Circuits, 1"
Rating: 5 (1 reviews)

This product is used in underfloor heating/cooling systems. It distributes the heating medium to the underfloor heating coils and the cooling medium in underfloor cooling applications. Includes: – 1 manifold bar with integrated flow meters and balancing valves. – 1 manifold bar with thermostatic valves – option for electric control (thermoelectric head/actuator) – manifold brackets. The flow meter is a balancing valve for flow and pressure drop, according to project specifications. To ensure correct flow meter operation, please observe the flow direction. Manufacturing Standard: ISO 9001:2015 Certification. ISO 14001:2004 Brass Composition: UNI EN 12164, UNI EN 12165 Thread: ISO7/1, UNI EN 10226, UNI ISO 228/1. Max. Temperature: 80°C. Max. Pressure: 10 bar. Max. Differential Pressure: 0.8 bar. Max. Ambient Temperature: 50°C. Dimensions: D = 1″ FI l = 50 mm W = 210 mm d= Eurocon G 3/4″ (3/4″ x 18 mm) S = 25 mm H = 324 mm P = 77 mm L = 262 mm Ltot = 287 mm.

SKU: 66420501600 Category: HEATING COLLECTORS-DISTRIBUTORS

Description Information Similar products

This product is used in underfloor heating/cooling systems. It distributes the heating medium to the underfloor heating coils and the cooling medium in underfloor cooling applications. Includes: - 1 manifold bar with integrated flow meters and balancing valves. - 1 manifold bar with thermostatic valves - option for electric control (thermoelectric head/actuator) - manifold brackets. The flow meter is a balancing valve for flow and pressure drop, according to project specifications. To ensure correct flow meter operation, please observe the flow direction. Manufacturing Standard: ISO 9001:2015 Certification. ISO 14001:2004 Brass Composition: UNI EN 12164, UNI EN 12165 Thread: ISO7/1, UNI EN 10226, UNI ISO 228/1. Max. Temperature: 80°C. Max. Pressure: 10 bar. Max. Differential Pressure: 0.8 bar. Max. Ambient Temperature: 50°C. Dimensions: D = 1" FI l = 50 mm W = 210 mm d= Eurocon G 3/4" (3/4" x 18 mm) S = 25 mm H = 324 mm P = 77 mm L = 262 mm Ltot = 287 mm.
