Above-ground breakaway hydrants are used for water supply in firefighting, within clean water networks with a maximum operating temperature of 40°C, a maximum pressure of 16 bar, and a frost depth of 1.25 m.
They are installed particularly in exposed areas because, in the event of an accident, the hydrant practically yields at the flange area and self-closes, preventing water from gushing out under pressure onto alleys or roadways.
Reference Standards:
EN 14384 Above-ground fire hydrants
EN 1092-2 Flanges and their joints. Circular flanges for pipes, valves, fittings, and accessories designated by PN. Part 2: Cast iron flanges
The DN100 hydrant has 1x A (4) + 2x B (3) connections
Epoxy paint protection 250 microns
The total height of the hydrant is 2150mm
It is equipped with an automatic draining device after the complete closing of the hydrant.

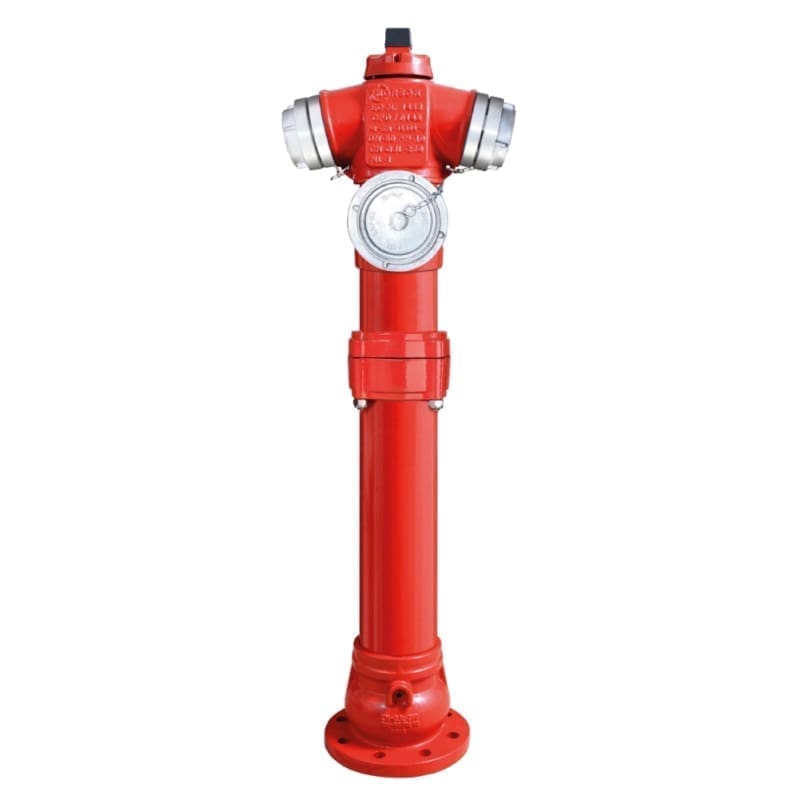

VALWater Above-Ground Breakaway Hydrant PN10/PN16 DN100, Frost Depth 1250mm
Above-ground breakaway hydrants are used for water supply in firefighting, within clean water networks with a maximum operating temperature of 40°C, a maximum pressure of 16 bar, and a frost depth of 1.25 m. They are installed particularly in exposed areas because, in the event of an accident, the hydrant practically yields at the flange area and self-closes, preventing water from gushing out under pressure onto alleys or roadways. Reference Standards: EN 14384 Above-ground fire hydrants; EN 1092-2 Flanges and their joints. Circular flanges for pipes, valves, fittings, and accessories designated by PN. Part 2: Cast iron flanges. The DN100 hydrant has 1x A (4) + 2x B (3) connections. Epoxy paint protection 250 microns. The total height of the hydrant is 2150mm. It is equipped with an automatic draining device after the complete closing of the hydrant.
| UM colete | PIECE |
|---|---|
| Tip articol | HYDRANT |
| Cod CPV | CPV 42131160-5 |
| Cantitate colet | 1 |
| Presiune nominala | 10 bar |
| Inaltime | 1250 |
| Cod vamal | 84818061 |
| Subclasa | HYDRANTS |
