black pipe, extruded from high-density polyethylene compound type PE100. The PE100 compound is a homogeneous mixture of polyethylene, antioxidants, pigments and UV radiation stabilizers. Reference standard: EN 12201-1,2: Plastics piping systems for water supply, service lines and pressure drainage and sewerage systems. Polyethylene (PE). Part 1 General, Part 2: Pipes. Pipe dimensions are standardized in accordance with EN 12201-2. Use WaterKIT PE100CERT pipes are used for drinking water supply networks installed underground. The 50-year service life corresponds to an operating temperature of 20°C and a working pressure equal to or less than the PN for which the pipe was manufactured. Approvals Technical approval and agrément for use in construction. Sanitary approval for use with drinking water.

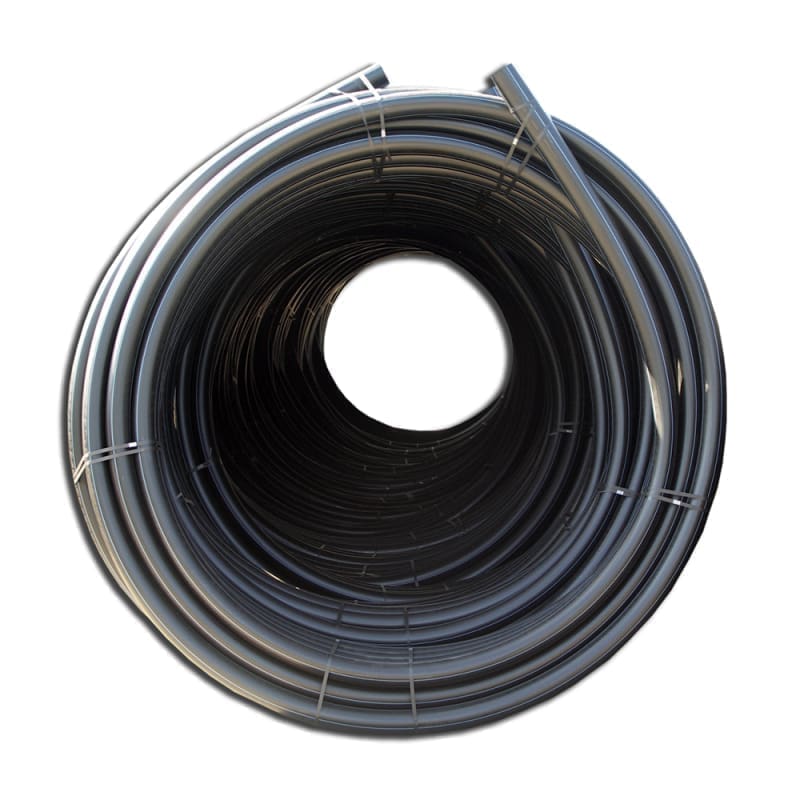

VALWater DRINKING WATER PIPE PE100 CERT D. 50×3.0mm PN10 SDR17 COIL 100m
High-density polyethylene PE100 pipes are used for cold water supply networks (including drinking water), installed underground using the conventional method, in open trenches with sand bedding.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for buried and above-ground pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for buried and above-ground pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | D50-110 PEHD WATER PIPE |
| Tip articol | TUB |
| UM colete | ROLL |
| Ambalare | COLAC / BARS TO GO |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Grosime | 3 mm |
| Presiune nominala | 10 bar |
| SDR | 17 |
| Diametru | 50 |
| Durata estimata de viata | 50 Years |
| Diametru(mm) | |
| Perioada garantie | 60 Months |
| Lungime | 100 m |
| Cod vamal | 39172110 |
