Black pipe, extruded from PE100 high-density polyethylene compound. The PE100 compound is a homogeneous
mixture of polyethylene, antioxidants, pigments, and UV radiation stabilizers.
Reference Standard: EN 12201-1,2: Plastic piping systems for water supply, connections, and
pressure drainage systems. Polyethylene (PE). Part 1: General, Part 2: Pipes.
Pipe dimensions are standardized, in accordance with EN 12201-2.
Usage
WaterKIT PE100CERT pipes are used for potable water supply networks installed underground.
A service life of 50 years corresponds to an operating temperature of 20°C and a working pressure equal to or less than
the PN for which the pipe was manufactured.
Approvals
Approval and technical agreement for use in construction.
Sanitary approval for use with potable water.

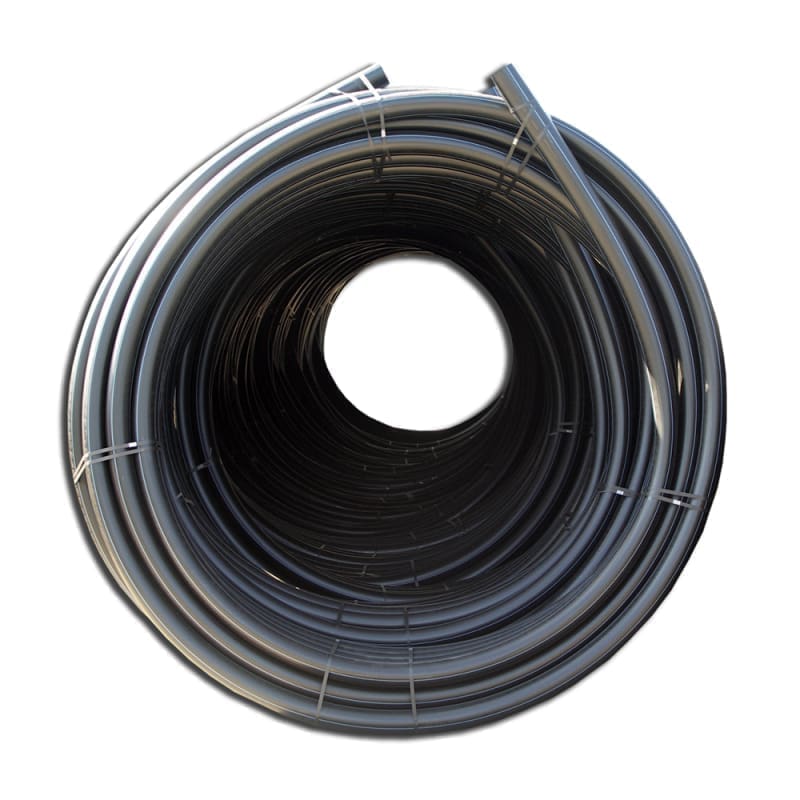

VALWater PE100 CERT Potable Water Pipe, D. 63 x 3.8 mm, PN10, SDR17, 100m Coil
High-density polyethylene PE100 pipes are utilized for cold water supply networks (including potable water), installed underground using conventional open trench methods with sand embedment.
Product Standard: SR EN 12201-2: Plastic piping systems for water supply and for connections and pressure drainage systems. Polyethylene (PE). Part 2: Pipes.
Product Standard: SR EN 12201-2: Plastic piping systems for water supply and for connections and pressure drainage systems. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | D50-110 PEHD WATER PIPE |
| Tip articol | TUB |
| UM colete | ROLL |
| Ambalare | COLAC / BARS TO GO |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Grosime | 3.8 mm |
| Presiune nominala | 10 bar |
| SDR | 17 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 63 |
| Diametru(mm) | |
| Lungime | 100 m |
| Cod vamal | 39172110 |
