black pipe, extruded from high-
density polyethylene compound type PE100. The PE100 compound is a homogeneous mixture
of polyethylene, antioxidants, pigments and UV radiation stabilizers
.
Reference standard: EN 12201-1,2: Plastics piping systems for
water supply, and for drainage and sewerage
under pressure. Polyethylene (PE). Part 1
General, Part 2: Pipes.
Pipe dimensions are standardized in accordance with EN 12201-2.
Use
WaterKIT PE100CERT pipes are used for drinking water supply networks
installed underground.
Service life of 50 years corresponds to an operating temperature of
20°C and for a working pressure equal to or lower
than the PN for which the pipe was manufactured.
Approvals
Approval and technical agrément for use in construction.
Sanitary approval for use with drinking water.

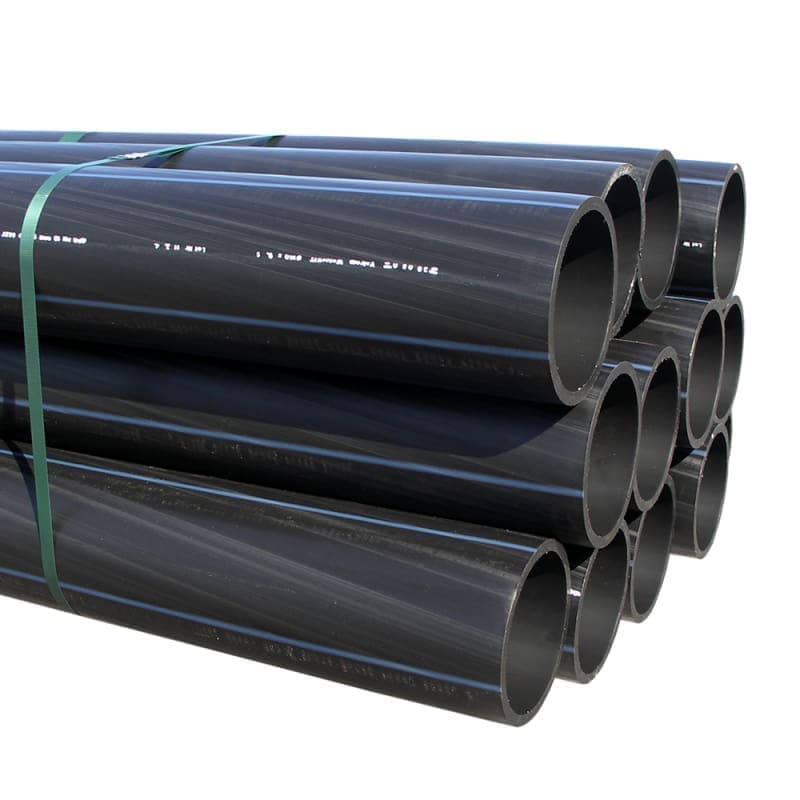

VALWater DRINKING WATER PIPE PE100 CERT D.160×21.9mm PN25 SDR7.4 BAR 12m
High-density polyethylene PE100 pipes are used for cold water supply networks (including drinking water), installed underground using the conventional method, in open trenches with sand bedding.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for buried and above-ground pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for buried and above-ground pressure drainage and sewerage. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | PEHD WATER PIPE D125-315 |
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| SDR | 7,4 |
| Lungime | 12 m |
| Presiune nominala | 25 bar |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 160 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
