Black pipe, extruded from high-density polyethylene compound type PE100. The PE100 compound is a homogeneous blend
of polyethylene, antioxidants, pigments and UV stabilisers.
Reference standard: EN 12201-1,2: Plastics piping systems for water supply, service connections and pressurised drainage and sewerage systems.
Polyethylene (PE). Part 1: General, Part 2: Pipes.
Pipe dimensions are standardised in accordance with EN 12201-2.
Use
WaterKIT PE100CERT pipes are used to build drinking water supply networks installed buried in the ground.
A 50-year service life corresponds to an operating temperature of 20°C and a working pressure equal to or lower
than the PN for which the pipe was manufactured.
Approvals
Technical approval and technical assessment for use in construction.
Sanitary approval for use with drinking water.

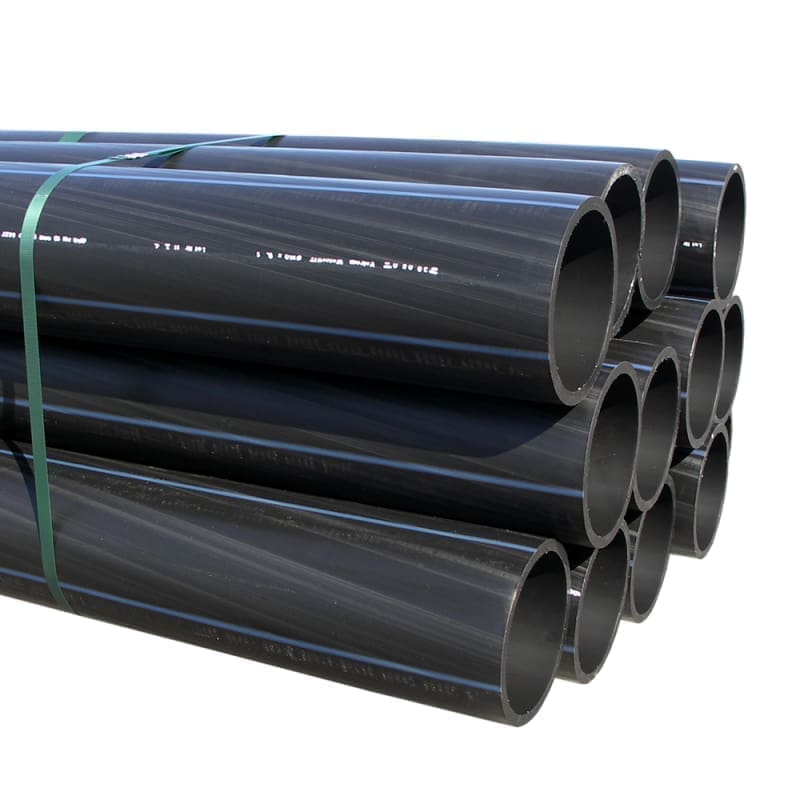

VALWater PIPE DRINKING WATER PE100 CERT D.280×16.60 mm PN10 SDR17 6 m BAR
High-density polyethylene PE100 pipes are used to build cold water supply networks (including drinking water). They are installed buried in the ground, using the conventional method, in an open trench with sand bedding/encasement.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for service connections and pressurised drainage and sewerage systems. Polyethylene (PE). Part 2: Pipes.
Product standard: SR EN 12201-2: Plastics piping systems for water supply and for service connections and pressurised drainage and sewerage systems. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | PEHD WATER PIPE D125-315 |
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Lungime | 6 m |
| Presiune nominala | 10 bar |
| Grosime | 16.6 mm |
| SDR | 17 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 280 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
