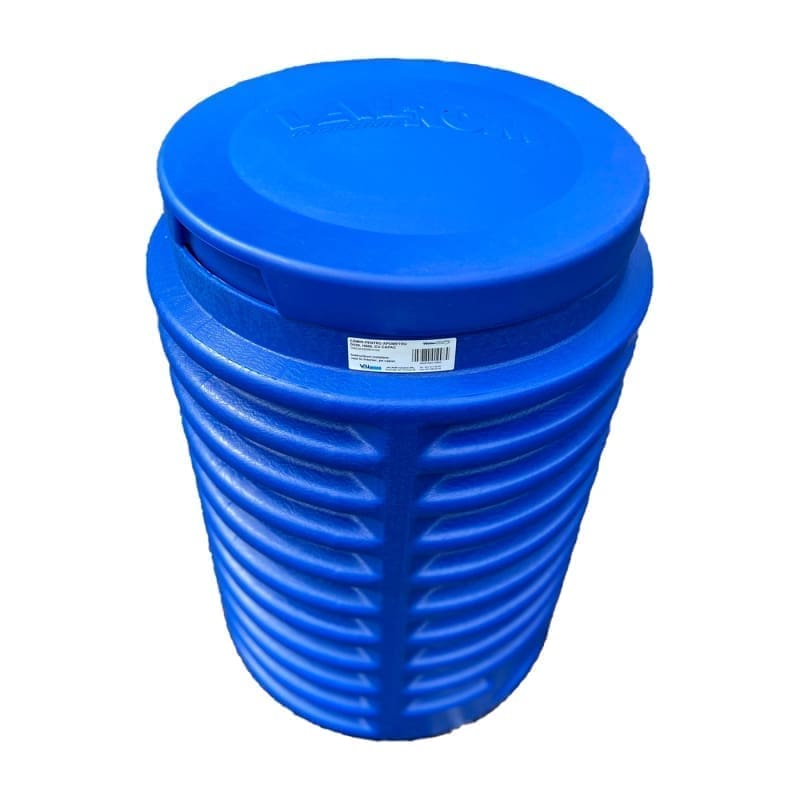

Water meter pits are compact, monoblock products (without joints or
welds), made of polyethylene (PE), manufactured using extrusion-blow
molding technology.
They are designed to protect the water meter and the connection installation.
Manufacturing conditions and general quality requirements for
water meter pits are included in Valrom Industrie’s Technical Company
Standard STF 9/2005.
Compact wall construction variant: single-layer wall made of compact
material (mass-colored polyethylene).
Component elements
– Water meter pit body
– Insulation gasket for the lid
– Thermally insulated lid
– 15 mm thick expanded polyethylene (PEE) thermal insulation foil
– 3/4” installation consisting of polyethylene pipes, compression
fittings, and isolation valves. Installations with customized components can be realized
according to specific needs.
– DN20 water meter.
The monoblock construction, the thermally insulated lid, and the sealing solutions for the
rubber gaskets at the lid and for
the wall penetrations prevent water infiltration and protect
the internal installation from freezing.
Approved and technically certified for use in construction.
