Black pipe, extruded from a high-density polyethylene PE100 compound. The PE100 compound is a homogeneous mixture of polyethylene, antioxidants, pigments, and UV radiation stabilizers. Reference Standard: EN 12201-1,2: Plastic piping systems for water supply, service connections, and pressure sewerage systems. Polyethylene (PE). Part 1: General, Part 2: Pipes. Pipe dimensions are standardized in accordance with EN 12201-2. Usage: WaterKIT PE100CERT pipes are used for potable water supply networks installed underground. A service life of 50 years corresponds to an operating temperature of 20°C and a working pressure equal to or less than the PN for which the pipe was manufactured. Approvals: Authorization and technical approval for use in construction. Sanitary approval for use with potable water.

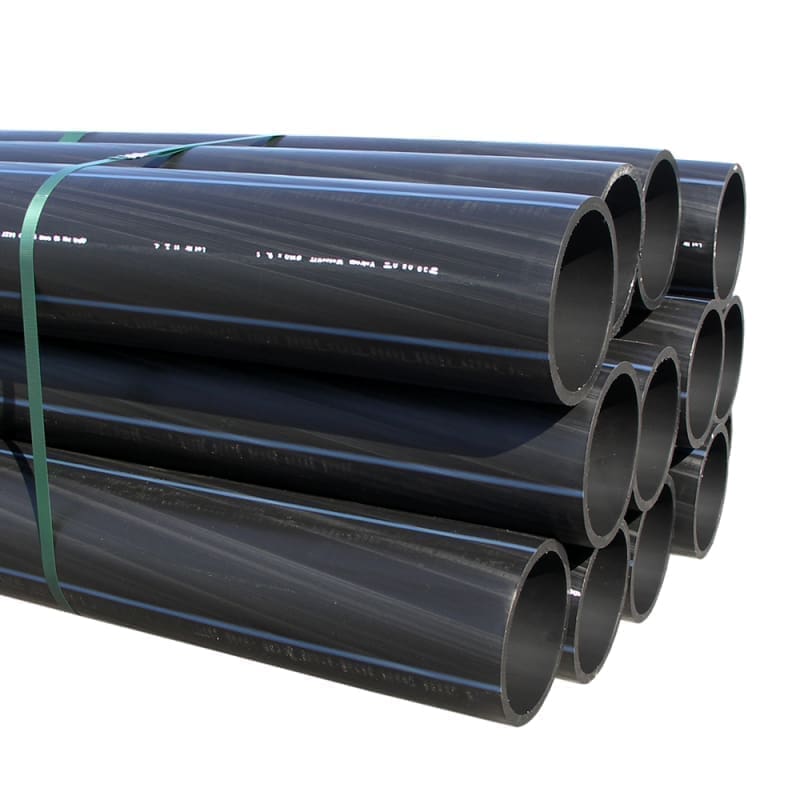

VALWater POTABLE WATER PIPE PE100 CERT D.450×21.5mm PN8 SDR21 13m BAR
High-density polyethylene PE100 pipes are used for cold water supply networks (including potable water). They are installed underground using the conventional method, in an open trench with sand embedding.
Product Standard: SR EN 12201-2: Plastic piping systems for water supply, service connections, and pressure sewerage systems. Polyethylene (PE). Part 2: Pipes.
Product Standard: SR EN 12201-2: Plastic piping systems for water supply, service connections, and pressure sewerage systems. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | HDPE WATER PIPES D355-630 |
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Presiune nominala | 8 bar |
| Lungime | 13 m |
| SDR | 21 |
| Grosime | 21.5 mm |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 450 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
