Used for connecting to polyethylene water supply pipes
with a maximum pressure of 10 bar, corresponding
to a temperature of 20°C.
Components
Body made of black polypropylene
Galvanized steel screws and nuts
NBR O-ring
AISI 430 stainless steel stiffening ring
Reference Standards
Thread according to DIN 2999 BS 21 ISO R 7/1 up to D160mm. ISO 228
for D180-D315mm
Pipe connection:
PE according to DIN8072-8074, ISO 3607 and EN ISO 12201
PVC according to ISO161, EN ISO 1452, BRL-K502
PP according to ISO 3609, UNI 8318, DIN 807.

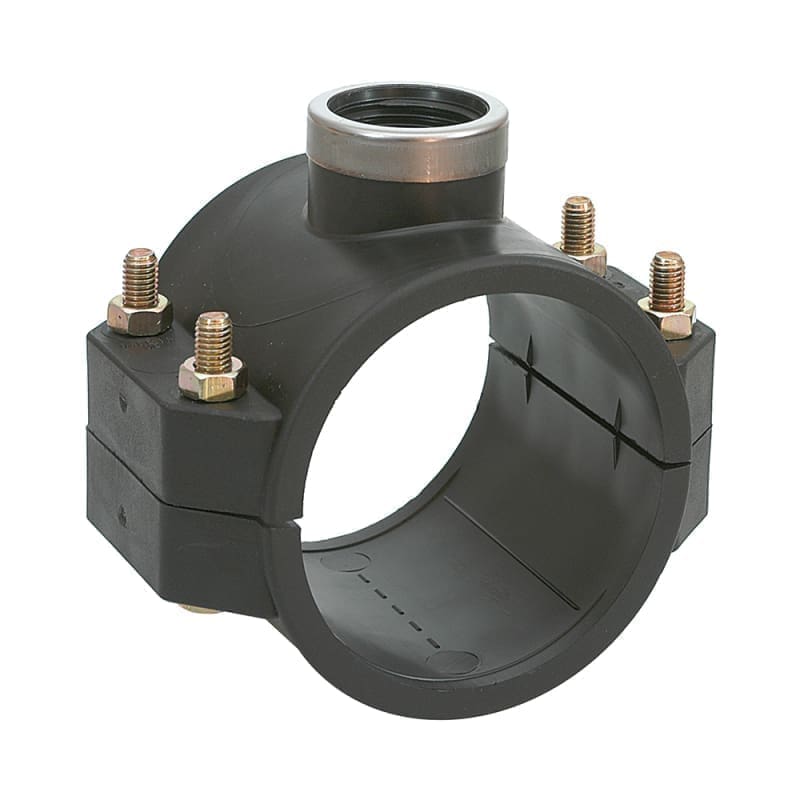

VALWater Saddle Clamp PN10 D.125×3/4″
Used for connecting to polyethylene water supply pipes with a maximum pressure of 10 bar, corresponding to a temperature of 20°C. Components: Body made of black polypropylene, galvanized steel screws and nuts, NBR O-ring, AISI 430 stainless steel stiffening ring. Reference Standards: Thread according to DIN 2999 BS 21 ISO R 7/1 up to D160mm. ISO 228 for D180-D315mm. Pipe connection: PE according to DIN8072-8074, ISO 3607 and EN ISO 12201; PVC according to ISO161, EN ISO 1452, BRL-K502; PP according to ISO 3609, UNI 8318, DIN 807.
| UM colete | BOX |
|---|---|
| Filet | FI |
| Tip articol | PIESA |
| Cod CPV | CPV 44167000-8 |
| Presiune nominala | 10 bar |
| Cantitate colet | 30 |
| Diametru | 125X3/4 |
| Cod vamal | 39174000 |
| Subclasa | PP COMPRESSION FITTINGS WATER |
