Used for connecting to polyethylene water supply pipes with a maximum pressure of 10 bar, corresponding to a temperature of 20°C. Components: Body made of polypropylene, black; screws and nuts made of galvanized steel; NBR O-ring; AISI 430 stainless steel stiffening ring. Reference standards: Thread according to DIN 2999, BS 21, ISO R 7/1 up to D160 mm. ISO 228 for D180–D315 mm. Pipe coupling: PE according to DIN 8072-8074, ISO 3607 and EN ISO 12201; PVC according to ISO 161, EN ISO 1452, BRL-K502; PP according to ISO 3609, UNI 8318, DIN 807.

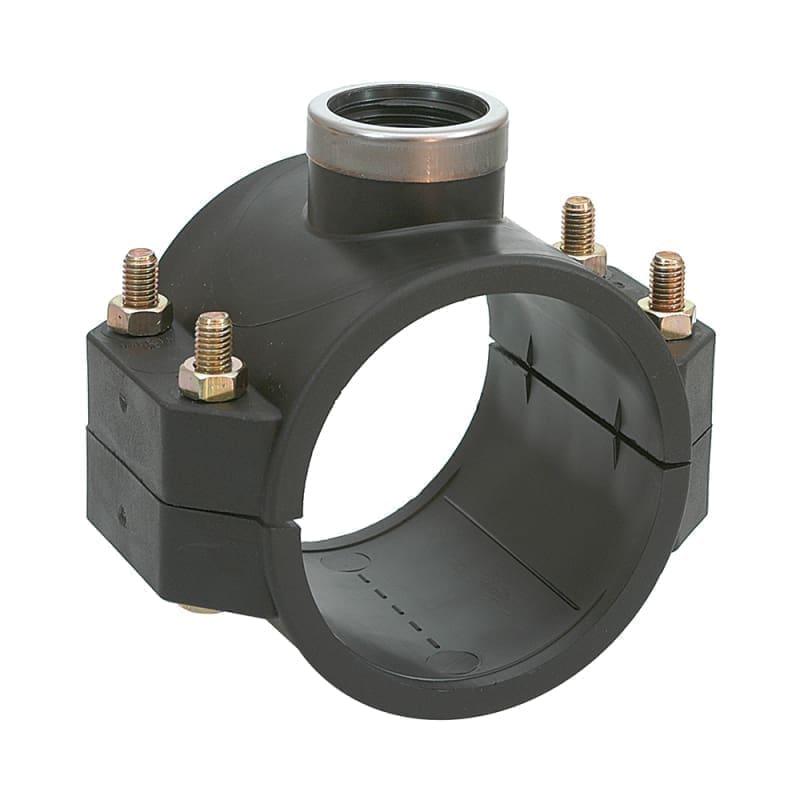

VALWater Tapping Saddle PN10 D. 50×1/2″
Used for connecting to polyethylene water supply pipes with a maximum pressure of 10 bar, corresponding to a temperature of 20°C. Components: Body made of polypropylene, black; screws and nuts made of galvanized steel; NBR O-ring; AISI 430 detection stiffening ring. Reference standards: Thread according to DIN 2999, BS 21, ISO R 7/1 up to D160 mm. ISO 228 for D180–D315 mm. Pipe coupling: PE according to DIN 8072-8074, ISO 3607 and EN ISO 12201; PVC according to ISO 161, EN ISO 1452, BRL-K502; PP according to ISO 3609, UNI 8318, DIN 807.
| UM colete | BOX |
|---|---|
| Filet | FI |
| Tip articol | PIESA |
| Cod CPV | CPV 44167000-8 |
| Presiune nominala | 10 bar |
| Cantitate colet | 50 |
| Diametru | 50×1/2 |
| Cod vamal | 39174000 |
| Subclasa | PP COMPRESSION FITTINGS WATER |
