These are used for connecting to polyethylene water supply pipes with a maximum pressure of 10 bar, corresponding to a temperature of 20°C. Components: Polypropylene body, black color; Zinc-plated steel screws and nuts; NBR O-ring; AISI 430 stainless steel stiffening ring. Reference Standards: Thread according to DIN 2999 BS 21 ISO R 7/1 up to D160mm. ISO 228 for D180-D315mm. Pipe coupling: PE according to DIN8072-8074, ISO 3607 and EN ISO 12201; PVC according to ISO161, EN ISO 1452, BRL-K502; PP according to ISO 3609, UNI 8318, DIN 807.

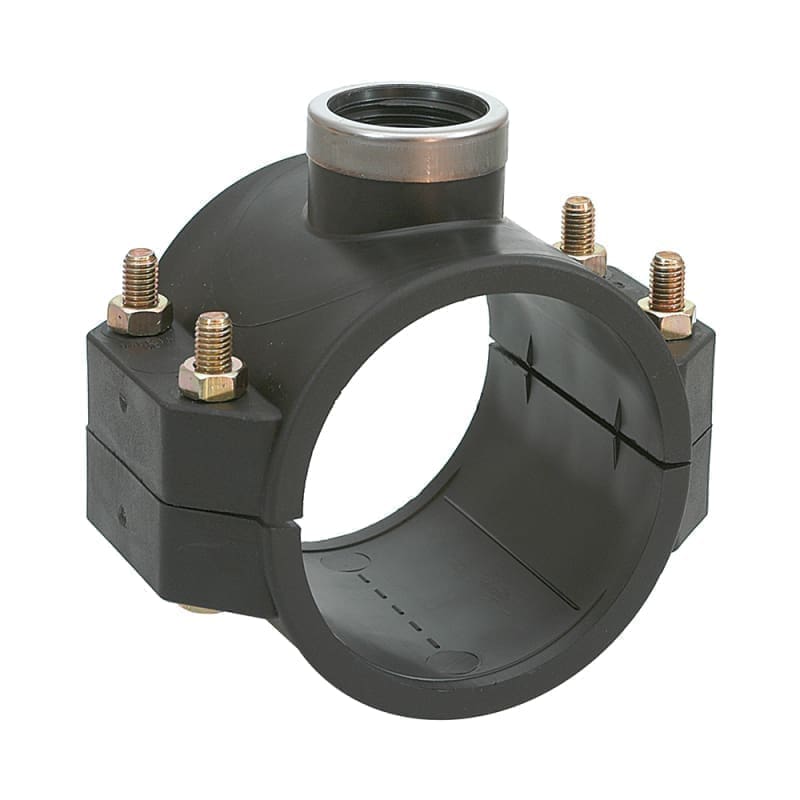

VALWater TAPPING SADDLE PN10 D. 63×1”
These are used for connecting to polyethylene water supply pipes with a maximum pressure of 10 bar, corresponding to a temperature of 20°C. Components: Polypropylene body, black color; Zinc-plated steel screws and nuts; NBR O-ring; AISI 430 stainless steel stiffening ring. Reference Standards: Thread according to DIN 2999 BS 21 ISO R 7/1 up to D160mm. ISO 228 for D180-D315mm. Pipe coupling: PE according to DIN8072-8074, ISO 3607 and EN ISO 12201; PVC according to ISO161, EN ISO 1452, BRL-K502; PP according to ISO 3609, UNI 8318, DIN 807.
| UM colete | BOX |
|---|---|
| Filet | FI |
| Tip articol | PIESA |
| Cod CPV | CPV 44167000-8 |
| Presiune nominala | 10 bar |
| Diametru | 63X1 |
| Cantitate colet | 75 |
| Cod vamal | 39174000 |
| Subclasa | PP COMPRESSION FITTINGS WATER |
