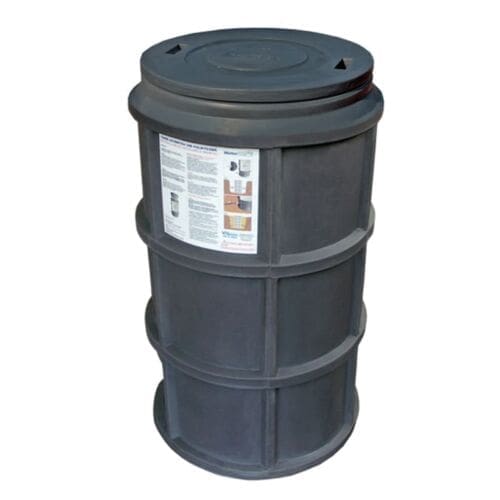

The water meter chambers are compact, monobloc products (without joints or
welds), made of polyethylene (PE), manufactured using
extrusion-blowing technology.
They are designed to protect the water meter and the connection installation.
The manufacturing conditions and general quality requirements for
water meter chambers are included in the Valrom Industrie STF 9/2005 Technical Standard.
Constructive variant with compact wall: single-layer wall made of
compact material (mass-colored polyethylene).
Component elements
– water meter chamber body
– insulation gasket for the lid

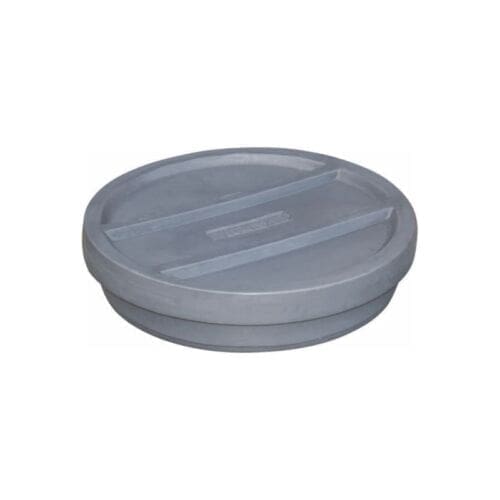

– thermally insulated lid
– PEE expanded polyethylene thermal insulation foil with a thickness of 15mm
– 3/4″ installation consisting of polyethylene pipes, compression
fittings and shut-off valves. Installations with customized components can be made according to needs.
The monobloc construction, the thermally insulated lid and the sealing solutions for the passages, the rubber gasket on the lid and for the passages through the wall, prevent water infiltration and protect the interior installation from freezing.
Approval and technical agreement for use in construction.
