It is used in internal drainage systems for the discharge of domestic wastewater under non-pressure flow conditions (where the leak test is performed at max. 0.5 bar), especially for building stacks, where sound attenuation from water discharge from upper floors is desired.
Reference standard: SR EN 1329-1.

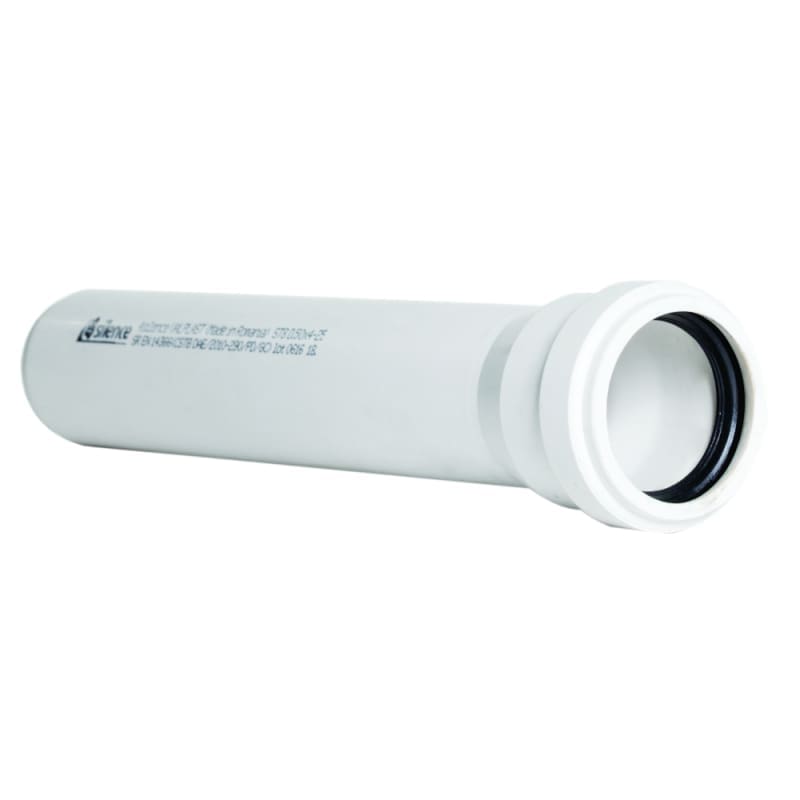

The white pipes are manufactured by co-extrusion from PVC-U with mineral additives, featuring a triple-layer wall construction, and are equipped with a socket and gasket at one end.
The range of dimensions includes diameters from 50 mm to 200 mm, with lengths between 250 mm and 3000 mm.
The acoustic performance is 11 dB for a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements conducted in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing pipe clamps is recommended.
The fire behavior classification of the piping, in accordance with SR EN 13501, falls into class C – s3 – d0. The material is fire-resistant and self-extinguishing when the fire source is removed. Unlike other materials for internal drainage, PVC-U is inherently fire-retardant, so no additional fireproofing is required. When passing through ceilings, we recommend using fire collars as a protective measure against flame propagation.
To reduce the noise level of internal drainage systems, the following are recommended:
• Selecting a system of pipes and fittings with good sound-absorbing properties;
• Ensuring correct system design;
• Installing the system correctly using appropriate products.

Tip articol	TUB
UM colete	BOX
Material	PVC
Ambalare	PROTECTED PACKAGES WITH WOODEN FRAMES
Fanta	0 mm
Unghi	0 Grade
Tip Valplast	4SILENCE HZ Pipe
Cod CPV	CPV 44163130-0
Lungime	1 m
Grosime	3.2 mm
Cantitate colet	9
Durata estimata de viata	50 Years
Perioada garantie	60 Months
Diametru	125
Cod vamal	39172310
Subclasa	4SILENCE PVC Drainage Pipes
