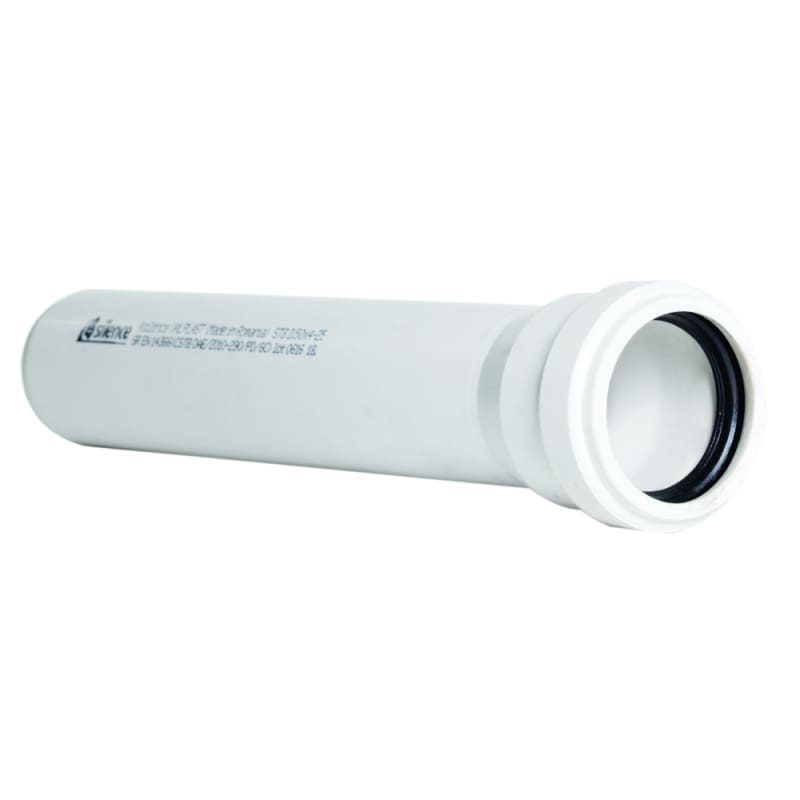

PVC SOUND PIPE 4SILENCE D.125X3.2 L3000
Used in indoor sewer installations for discharging domestic wastewater in gravity flow (non-pressure) conditions (where the leak-tightness test is carried out at max. 0.5 bar), especially for building stacks, where sound damping from water discharge from upper floors is required.
Reference standard: SR EN 1329-1.
The pipes, white in color, are manufactured by co-extrusion from PVC-U with mineral additives, in a triple-layer wall construction, fitted at one end with a socket with seal.
The size range includes diameters from 50 mm to 200 mm, with lengths between 250 and 3000 mm.
Acoustic performance is 11 dB at a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements carried out in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
The fire performance classification of the piping in accordance with SR EN 13501 is class C – s3 – d0. The material is fire-resistant, self-extinguishing when the source of fire disappears. No fireproofing is required as with other materials for indoor sewerage, as PVC-U is flame-retardant. When passing through ceilings, we recommend using fire collars as a protective measure against flame spread.
To reduce the noise level of indoor sewer systems, the following is recommended:
• Choosing a pipe and fittings system with good sound-absorbing properties;
• Proper design of the installations;
• Correct installation of the system using suitable products.
Reference standard: SR EN 1329-1.
The pipes, white in color, are manufactured by co-extrusion from PVC-U with mineral additives, in a triple-layer wall construction, fitted at one end with a socket with seal.
The size range includes diameters from 50 mm to 200 mm, with lengths between 250 and 3000 mm.
Acoustic performance is 11 dB at a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements carried out in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
The fire performance classification of the piping in accordance with SR EN 13501 is class C – s3 – d0. The material is fire-resistant, self-extinguishing when the source of fire disappears. No fireproofing is required as with other materials for indoor sewerage, as PVC-U is flame-retardant. When passing through ceilings, we recommend using fire collars as a protective measure against flame spread.
To reduce the noise level of indoor sewer systems, the following is recommended:
• Choosing a pipe and fittings system with good sound-absorbing properties;
• Proper design of the installations;
• Correct installation of the system using suitable products.
| Tip articol | TUB |
|---|---|
| UM colete | BOX |
| Material | PVC |
| Ambalare | PROTECTED PACKAGES WITH WOODEN FRAMES |
| Fanta | 0 mm |
| Unghi | 0 Grade |
| Tip Valplast | 4SILENCE HZ Pipe |
| Cod CPV | CPV 44163130-0 |
| Lungime | 3 m |
| Grosime | 3.2 mm |
| Cantitate colet | 9 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 125 |
| Cod vamal | 39172310 |
| Subclasa | 4SILENCE PVC Drainage Pipes |
