It is used in indoor drainage systems for the discharge of domestic wastewater in gravity flow mode (where the leak test is performed at a maximum of 0.5 bar), especially for building risers where sound attenuation from water discharge from upper floors is desired.
Reference standard: SR EN 1329-1.

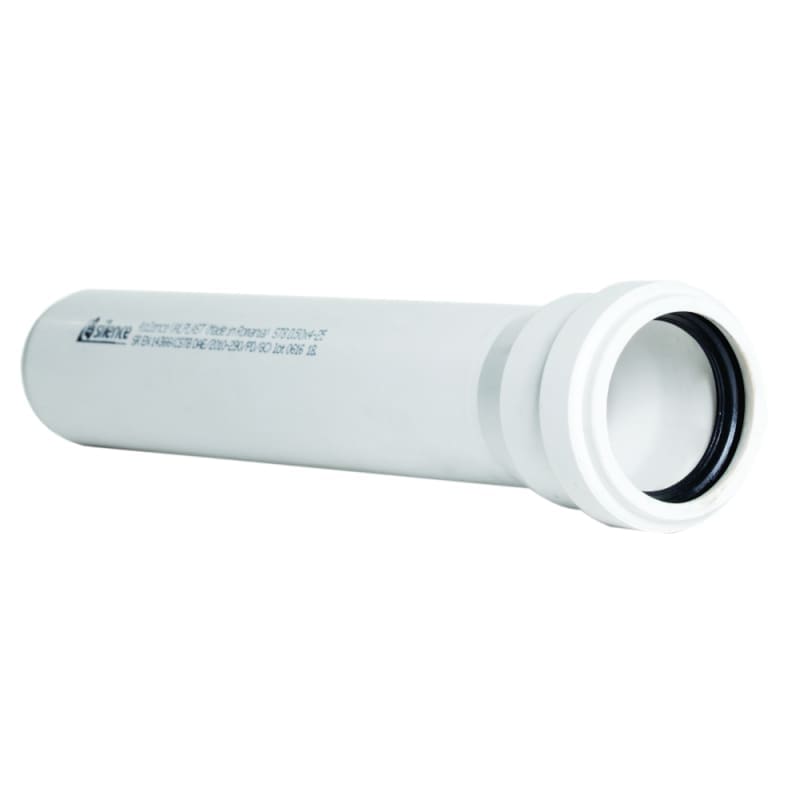

The white pipes are manufactured by co-extrusion from PVC-U with mineral additives, featuring a triple-layer wall construction, and are equipped with a socket and seal at one end.
The size range includes diameters from 50 mm to 200 mm, with lengths between 250 mm and 3000 mm.
The acoustic performance is 11 dB for a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements conducted in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
The fire behavior classification of the piping, in accordance with SR EN 13501, falls into class C – s3 – d0. The material is fire-resistant and self-extinguishing when the fire source is removed. Unlike other materials for indoor drainage, fireproofing is not required as PVC-U is inherently flame-retardant. When passing through ceilings, we recommend using fire collars as a protective measure against flame propagation.
To reduce the noise level of indoor drainage systems, the following are recommended:
• Selecting a system of pipes and fittings with good sound-absorbing properties;
• Ensuring correct system design;
• Correct installation of the system using appropriate products.

Tip articol	TUB
UM colete	BOX
Material	PVC
Fanta	0 mm
Unghi	0 Grade
Cod CPV	CPV 44163130-0
Lungime	3 m
Cantitate colet	9
Diametru	200
Cod vamal	39172310
Subclasa	4SILENCE PVC Drainage Pipes
