Used in indoor sewage systems for the discharge of domestic wastewater in gravity flow mode (where the tightness test is performed at max. 0.5 bar), where sound dampening from water discharge is desired.
Reference standard: EN 1451.
Black color, mass-colored, single-layer, made of PP with mineral additives.
Size range includes diameters from 32 mm to 160 mm.
Socket and gasket joining system, no special tools, adhesives or solvents required.
Acoustic performance is 16 dB for a flow rate of 2 l/s. Sound-absorbing properties are certified following measurements performed in the laboratories of the Fraunhofer Institute in Germany, according to EN 14366. The use of sound-absorbing clamps is recommended.
Fire behavior classification, in accordance with DIN 4102-1, is class B1. When passing through ceilings, we recommend using fire-resistant clamps as a protective measure against flame propagation.
To reduce the noise level of indoor sewage systems, it is recommended to:
• Choose a pipe and fitting system with good sound-absorbing properties;
• Ensure correct design of the installations;
• Correctly install the system using appropriate products.

Material	PP
UM colete	PIECE

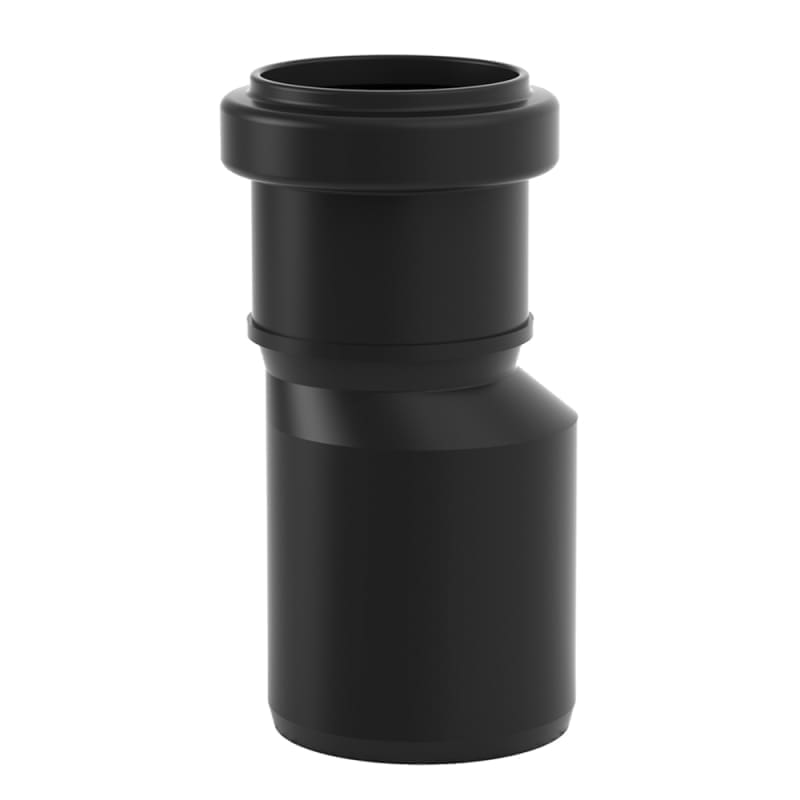

Tip articol	REDUCTIONS
Cod CPV	CPV 44167300-1
Cantitate colet	1
Diametru	50
Cod vamal	39174000
Subclasa	FITTINGS PP SOUND ABSORBING SEWAGE PIPES
