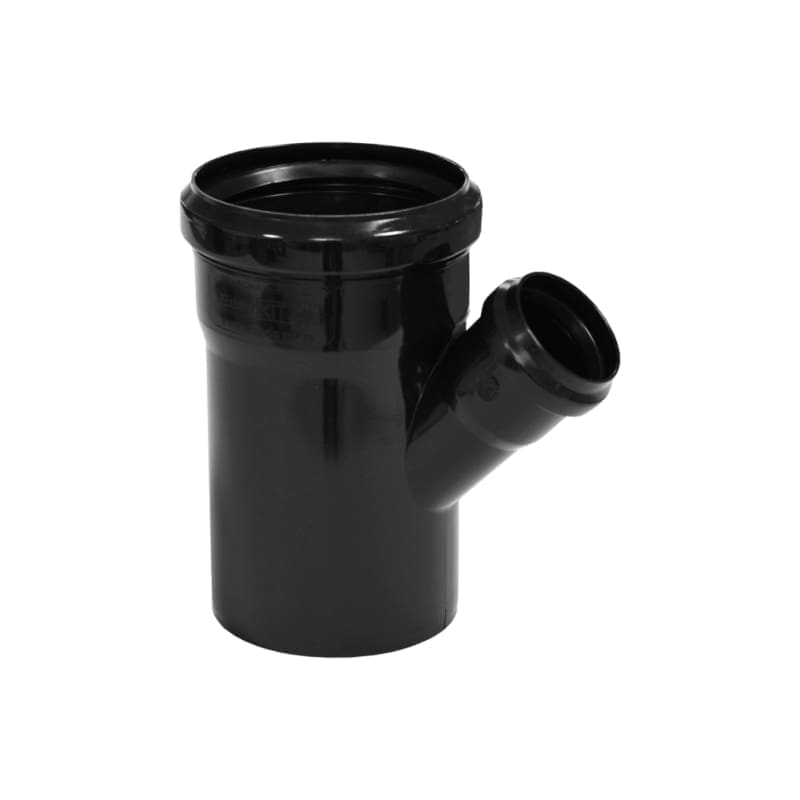

PP Acoustic Reduced Y-Fitting BF D.110/75 45°
This product is used in internal drainage systems for the discharge of domestic wastewater under non-pressure flow conditions (where the leak test is performed at max. 0.5 bar), specifically where sound attenuation from water discharge is desired.
Reference standard: EN 1451.
These fittings are black, mass-colored, single-layer, and made from PP with mineral additives.
The size range includes diameters from 32 mm to 160 mm.
The socket and gasket jointing system does not require special tools, adhesives, or solvents.
Acoustic performance is 16 dB for a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements conducted in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
Fire behavior classification, in accordance with DIN 4102-1, falls under class B1. When passing through ceilings, we recommend using fire-resistant clamps as a protective measure against flame propagation.
To reduce the noise level of internal drainage systems, we recommend:
• Selecting a system of pipes and fittings with good sound-absorbing properties;
• Ensuring correct system design;
• Installing the system correctly using appropriate products.
Reference standard: EN 1451.
These fittings are black, mass-colored, single-layer, and made from PP with mineral additives.
The size range includes diameters from 32 mm to 160 mm.
The socket and gasket jointing system does not require special tools, adhesives, or solvents.
Acoustic performance is 16 dB for a flow rate of 2 l/s. The sound-absorbing properties are certified following measurements conducted in the laboratories of the Fraunhofer Institute in Germany, in accordance with EN 14366. The use of sound-absorbing clamps is recommended.
Fire behavior classification, in accordance with DIN 4102-1, falls under class B1. When passing through ceilings, we recommend using fire-resistant clamps as a protective measure against flame propagation.
To reduce the noise level of internal drainage systems, we recommend:
• Selecting a system of pipes and fittings with good sound-absorbing properties;
• Ensuring correct system design;
• Installing the system correctly using appropriate products.
| Material | PP |
|---|---|
| UM colete | BOX |
| Tip articol | REMARIFICATIONS |
| Cod CPV | CPV 44167300-1 |
| Cantitate colet | 15 |
| Unghi | 45 Grade |
| Diametru | 110/75 |
| Cod vamal | 39174000 |
| Subclasa | FITTINGS PP SOUND ABSORBING SEWAGE PIPES |
