Black pipe, extruded from PE100 high-density polyethylene compound. The PE100 compound is a homogeneous mixture of polyethylene, antioxidants, pigments, and UV radiation stabilizers. Reference Standard: EN 12201-1,2: Plastic piping systems for water supply, service connections, and pressure sewerage systems. Polyethylene (PE). Part 1: General, Part 2: Pipes. Pipe dimensions are standardized in accordance with EN 12201-2. Usage: WaterKIT PE100CERT pipes are used for underground drinking water supply networks. The 50-year service life corresponds to an operating temperature of 20°C and a working pressure equal to or less than the PN for which the pipe was manufactured. Approvals: Approval and technical certification for use in construction. Sanitary approval for use with drinking water.

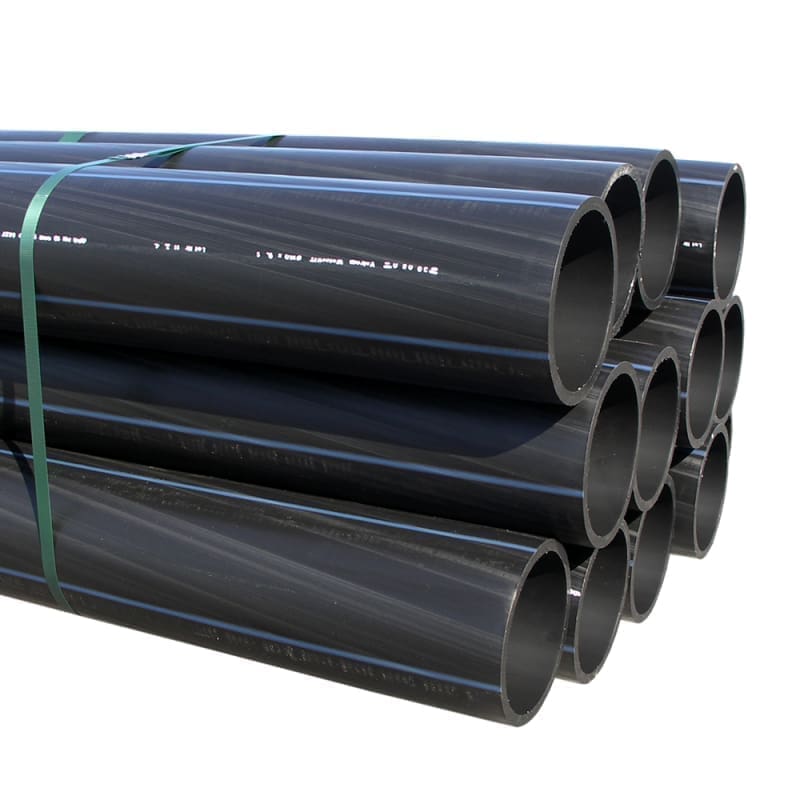

VALWater DRINKING WATER PIPE PE100 CERT Dia. 90×5.4mm PN10 SDR17 13m BAR
PE100 high-density polyethylene pipes are utilized for cold water supply networks (including drinking water) and are installed underground using conventional open-trench methods with sand bedding.
Product Standard: SR EN 12201-2: Plastic piping systems for water supply and for service connections and pressure sewerage systems. Polyethylene (PE). Part 2: Pipes.
Product Standard: SR EN 12201-2: Plastic piping systems for water supply and for service connections and pressure sewerage systems. Polyethylene (PE). Part 2: Pipes.
| Material | PE100 |
|---|---|
| Subclasa | D50-110 PEHD WATER PIPE |
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Grosime | 5.4 mm |
| Presiune nominala | 10 bar |
| Lungime | 13 m |
| SDR | 17 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 90 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
