Black pipe, extruded from PE100 high-density polyethylene compound. The PE100 compound is a homogeneous mixture of polyethylene, antioxidants, pigments, and UV radiation stabilizers. Reference Standard: EN 12201-1,2: Plastic piping systems for water supply, connections, and pressure drainage systems. Polyethylene (PE). Part 1: General, Part 2: Pipes. Pipe dimensions are standardized in accordance with EN 12201-2. Use: WaterKIT PE100CERT pipes are used for potable water supply networks installed underground. The service life of 50 years corresponds to an operating temperature of 20°C and a working pressure equal to or less than the PN for which the pipe was manufactured. Approvals: Technical approval and agreement for use in construction. Sanitary approval for use with potable water.

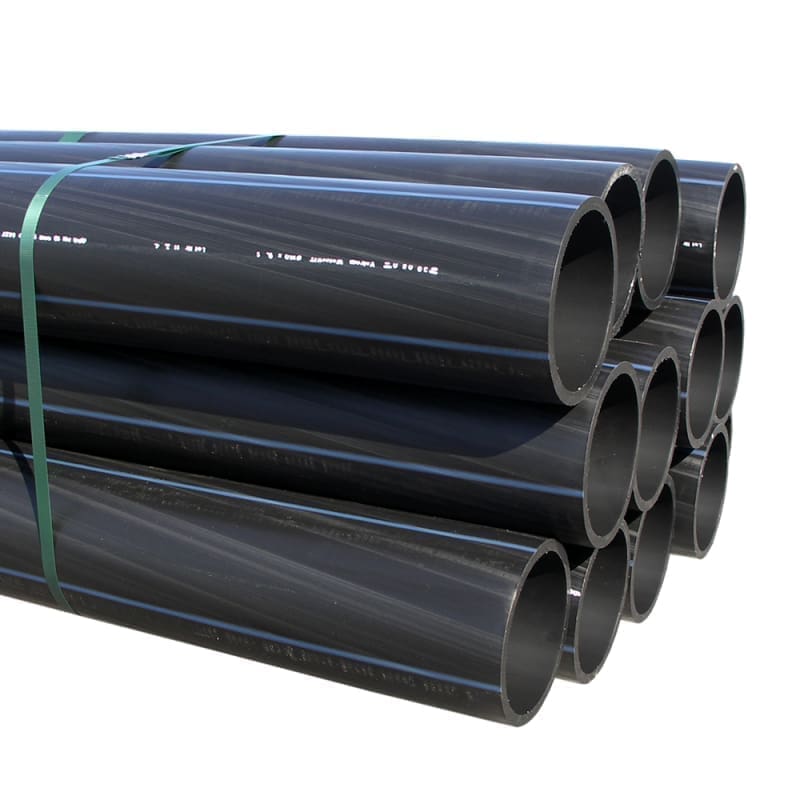

VALWater POTABLE WATER PIPE PE100 CERT D110x4.0 PN6 SDR27.6 13 m
PE100 high-density polyethylene pipes are used for cold water supply networks (including potable water). They are installed underground using the conventional open trench method with sand embedment.
When selecting these pipes, it is essential to evaluate their rigidity.
When selecting these pipes, it is essential to evaluate their rigidity.
| Material | PE100 |
|---|---|
| Subclasa | D50-110 PEHD WATER PIPE |
| Tip articol | TUB |
| Ambalare | COLAC / BARS TO GO |
| UM colete | BAR |
| Tara origine preferentiala | EU |
| Cod CPV | CPV 44163160-9 |
| Cantitate colet | 1 |
| Presiune nominala | 6 bar |
| SDR | 27,6 |
| Durata estimata de viata | 50 Years |
| Perioada garantie | 60 Months |
| Diametru | 110 |
| Diametru(mm) | |
| Cod vamal | 39172110 |
