Water meter chambers are compact, monoblock products (without joints or
welds), made of polyethylene (PE), manufactured using
extrusion-blow molding technology.
They are designed to protect the water meter and the connection installation.
Manufacturing conditions and general quality requirements for
water meter chambers are included in Valrom Industrie’s Technical
Company Standard STF 9/2005.
Compact wall construction variant: single-layer wall made of compact
material (mass-colored polyethylene).
Components
– Water meter chamber body
– Lid insulation gasket
– Insulated lid
– 15 mm thick expanded polyethylene (PEE) thermal insulation foil
– 3/4″ installation consisting of polyethylene pipes, compression
fittings, and isolation valves. Customized
installations can be created according to specific needs.
The monoblock construction, the insulated lid, and the sealing solutions for
the rubber gasket transitions at the lid and for the
wall penetrations prevent water infiltration and protect the
internal installation from freezing.
Approved and technically certified for use in construction.

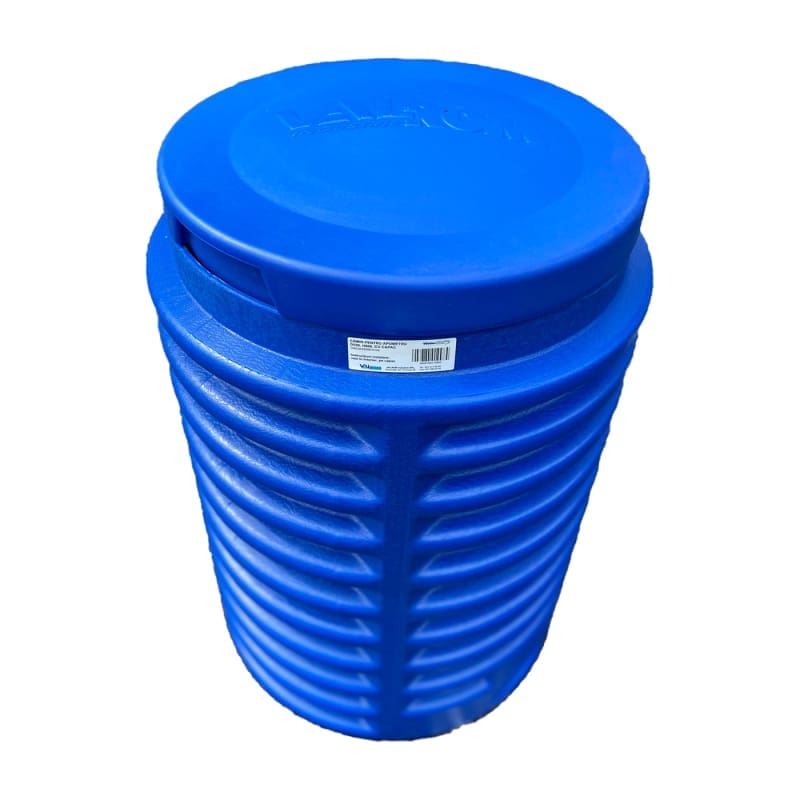

VALWater Insulated Water Meter Chamber D800 H1050 with Lid
The VALWater water meter chamber is designed to protect the water meter and related installations for individual connections.
The water meter pit must be installed in non-traffic areas (green space).
The VALWater DN 800 mm water meter chamber, with access diameter D 640 mm, is compact, monobloc (without joints or welds), made of polyethylene (PE), manufactured by extrusion-blow molding technology from polyethylene, mass-colored blue. The polyethylene lid is closed and contains an air cushion.
A 15 mm thick expanded polyethylene insulation film is applied to the inner wall.
A sealing gasket (code 47901000116) can be mounted between the lid and the chamber body to ensure water tightness, prevent outside air from entering and freezing the installation.
The water meter pit must be installed in non-traffic areas (green space).
The VALWater DN 800 mm water meter chamber, with access diameter D 640 mm, is compact, monobloc (without joints or welds), made of polyethylene (PE), manufactured by extrusion-blow molding technology from polyethylene, mass-colored blue. The polyethylene lid is closed and contains an air cushion.
A 15 mm thick expanded polyethylene insulation film is applied to the inner wall.
A sealing gasket (code 47901000116) can be mounted between the lid and the chamber body to ensure water tightness, prevent outside air from entering and freezing the installation.
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Diametru | 800 |
| Inaltime | 1050 |
| Cod vamal | 39251000 |
| Subclasa | WATER METER PITS |
