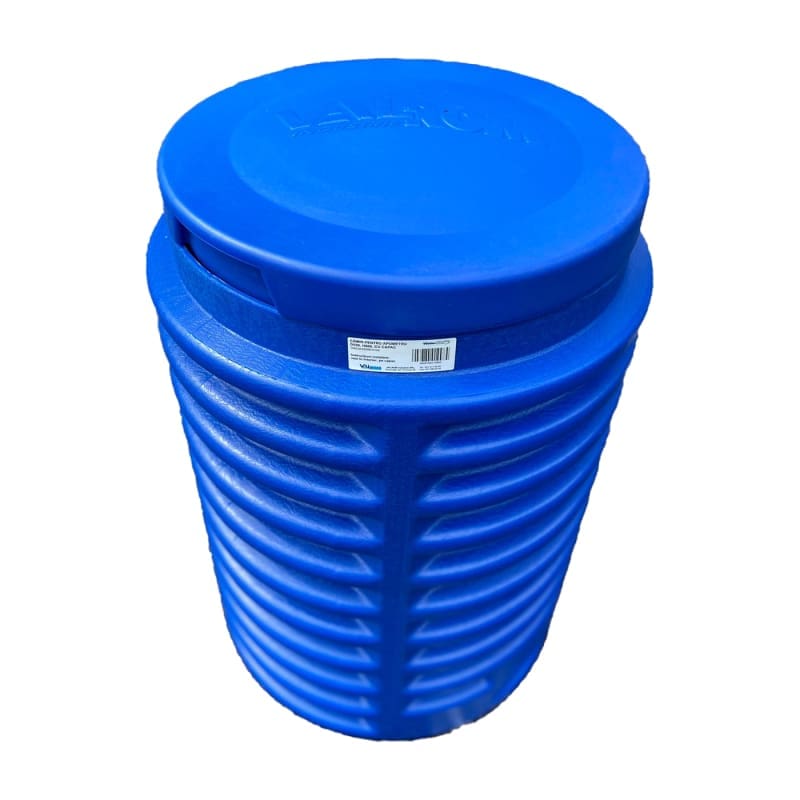

DOUBLE-WALL VALWater WATER METER PIT LID D530 D800 H1350 INSTALL 32X1” FILTER
The water meter pit is designed to protect the water meter and related installations for individual connections.
The water meter pit is installed in areas without traffic (green spaces), in Group 1 areas (used exclusively by pedestrians or cyclists) and in Group 2 areas (sidewalks and parking spaces, car parks), classification is according to SR EN 124-1.
When installed in Group 1 or Group 2 areas, a cover with a minimum load class of A15 or minimum B125, according to EN 124, shall be mounted above the PE lid pit. The PE lid of the pit has a diameter of 530 mm and 2 pockets which allows its extraction through a composite/cast iron cover with a clear opening of D600.
The water meter pit body is produced by blow extrusion from polyethylene, with a double-wall structure, compact, blue on the outside and white on the inside.
The gasket ensures water tightness, prevents outside air from entering and freezing the installation.
The installation includes: PE100 water pipe Dext 32x2 SDR 17 PN10, compression fittings 32X1''FE (2 pcs.), brass water valves 1''FI-FE with lever (2 pcs.), 1'' brass angled water filter, 1'' FI-FE brass elbow, 1'' FI-FI brass elbow.
The water meter pit is installed in areas without traffic (green spaces), in Group 1 areas (used exclusively by pedestrians or cyclists) and in Group 2 areas (sidewalks and parking spaces, car parks), classification is according to SR EN 124-1.
When installed in Group 1 or Group 2 areas, a cover with a minimum load class of A15 or minimum B125, according to EN 124, shall be mounted above the PE lid pit. The PE lid of the pit has a diameter of 530 mm and 2 pockets which allows its extraction through a composite/cast iron cover with a clear opening of D600.
The water meter pit body is produced by blow extrusion from polyethylene, with a double-wall structure, compact, blue on the outside and white on the inside.
The gasket ensures water tightness, prevents outside air from entering and freezing the installation.
The installation includes: PE100 water pipe Dext 32x2 SDR 17 PN10, compression fittings 32X1''FE (2 pcs.), brass water valves 1''FI-FE with lever (2 pcs.), 1'' brass angled water filter, 1'' FI-FE brass elbow, 1'' FI-FI brass elbow.
| UM colete | PIECE |
|---|---|
| Ambalare | NEAMBALAT |
| Tip articol | WALK |
| Cod CPV | CPV 44115210-4 |
| Cantitate colet | 1 |
| Perioada garantie | 24 Months |
| Durata estimata de viata | 50 Years |
| Diametru | 800 |
| Inaltime | 1350 |
| Cod vamal | 39251000 |
| Subclasa | WATER METER CHAMBERS WITH INSTALLATION |
